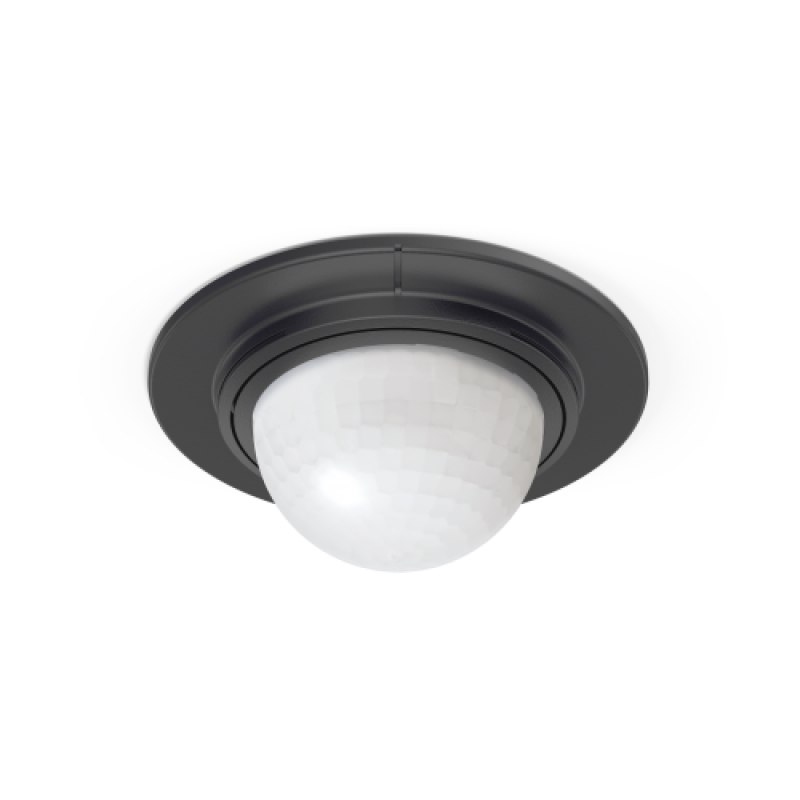

Steinel, IS 360-1 DE/B, IR Motion Detector for Recessed Ceiling - Black
Intelligent technology for installation. Infrared wall sensor IS 360-1 DE, for indoors and out, ideal for installing in projecting roofs and suspended ceilings, 360° angle of coverage, reach can be set up to 4 m, selectable time and twilight threshold, detection zone can be customised with shrouds.
Technical Specification:
- European Article Number (EAN): 4007841032852
- Type: Motion detectors
- Dimensions (Ø x H) 78 x 89 mm
- Mains power supply: 230 – 240 V , 50 / 60 Hz
- Sensor Technology: passive infrared
- Application, place: Indoors, outdoors
- Type of installation: Other
- Switching zones: 304 Schaltzonen
- Electronic scalability: No
- Mechanical scalability: No
- Optimum mounting height: 2.5 m
- Detection angle: 360°
- Angle of aperture: 90°
- Sneak-by guard: Yes
- Capability of masking out individual segments: Yes
- Reach, tangential: Ø 8 m (50 m²)
- Twilight setting TEACH: No
- Twilight setting: 2 – 2000 lx
- Time setting: 8 s – 35 min
- Switching output 1, resistive: 1000 W
- Switching output 1, number of LEDs / fluorescent lamps: 6 stk.
- Constant-lighting control: No
- Basic light level function: No
- With remote control: No
- Interconnection: Yes
- IP rating: IP54
- Material: Plastic
- Ambient temperature: -20 – 40 °C
- Colour: black
- Colour, RAL: 9005
- Version: black
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
