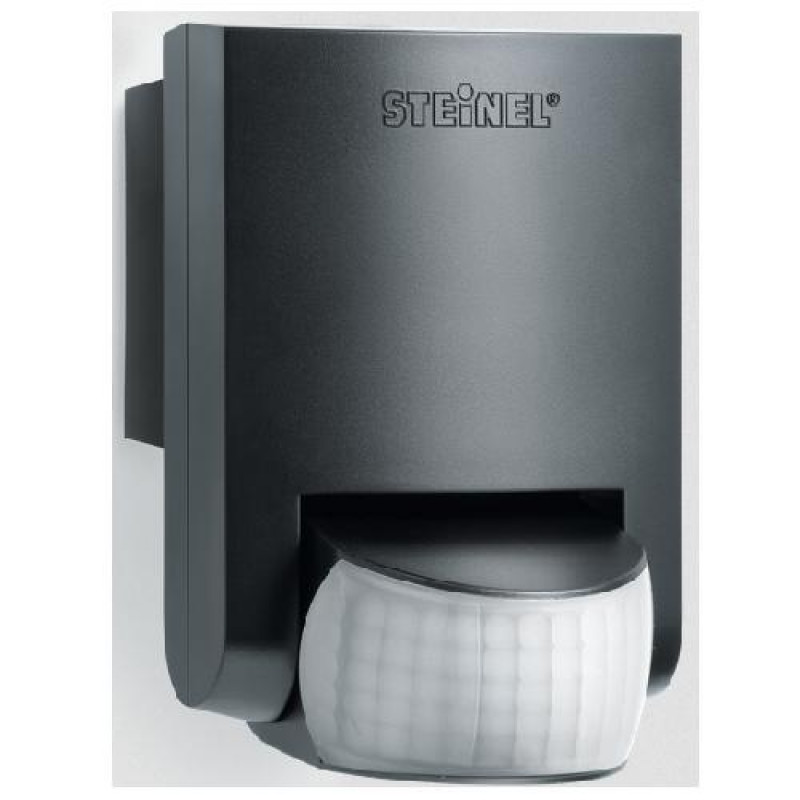

Steinel, IS 130-2/B, Infrared Motion Detector - Black

Steinel, IS 130-2/B, Infrared Motion Detector - Black

Targeted, all-round detection. Infrared motion detector IS 130-2, for indoors and out, ideal for targeted detection close to buildings, 130° angle of coverage, reach up to 12 m, selectable time and twilight threshold, sensor swivels through 50° and tilts through 90° for exact adjustment of the detection zone.

Technical Specifications:

• European Article Number (EAN): 4007841660215
• Type: Motion detectors
• Dimensions: (L x W x H) 130 x 78 x 84 mm
• Mains power supply: 230 – 240 V , 50 / 50 Hz
• Sensor Technology: passive infrared
• Application, place: Indoors, outdoors
• Type of installation: Surface wiring
• Switching zones: 260 Schaltzonen
• Electronic scalability: No
• Mechanical scalability: No
• Optimum mounting height: 2 m
• Detection angle: 130 °
• Sneak-by guard: Yes
• Capability of masking out individual segments: Yes
• Reach, radial r = r = 3 m (10 m²)
• Reach, tangential r = 12 m (163 m²)
• Twilight setting TEACH: No
• Twilight setting: 2 – 2000 lx
• Time setting: 8 s – 35 min
• Switching output 1, resistive: 6000 W
• Switching output 1, number of LEDs / fluorescent lamps: 4 stk.
• Constant-lighting control: No
• Basic light level function: No
• With remote control: No
• Interconnection: No
• IP rating: IP54
• Material: Plastic
• Ambient temperature: -20 – 50 °C
• Colour: black
• Colour, RAL: 9005
• Version: black

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
