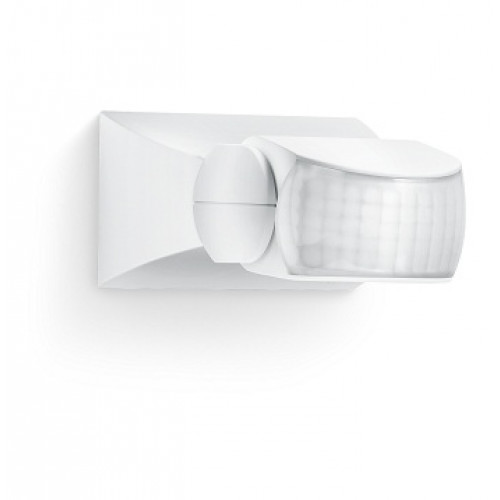

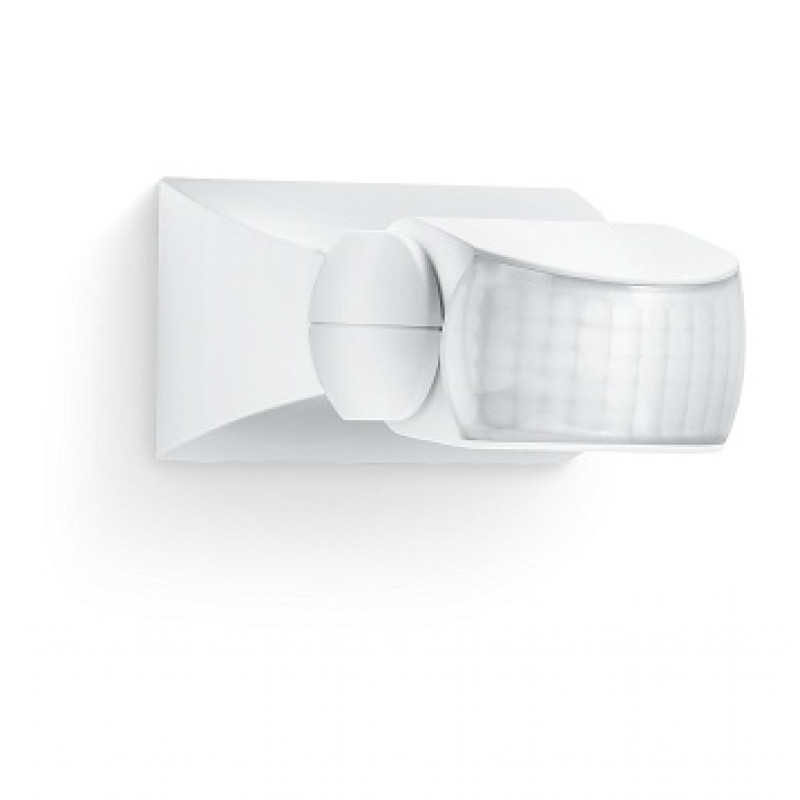

Steinel, IS 1/W Promotion, IR Motion Detector IS 1 for I/O - White

Steinel, IS 1/W Promotion, IR Motion Detector IS 1 for Indoor and Outdoors - White

Targeted detection and attractive price. Infrared motion detector IS 1, for indoors and out, ideal for targeted coverage of small areas, 120° angle of coverage, reach up to 10 m, selectable time and twilight threshold, sensor turns through 30° and tilts through 180° for exact adjustment of the detection zone.

Technical Specifications:

• European Article Number (EAN): 4007841600310
• Type: Motion detectors
• Dimensions: (L x W x H) 50 x 80 x 120 mm
• Mains power supply: 230 – 240 V , 50 / 50 Hz
• Sensor Technology: passive infrared
• Application, place: Indoors, outdoors
• Type of installation: Surface wiring
• Switching zones: 260 Schaltzonen
• Electronic scalability: No
• Mechanical scalability: No
• Optimum mounting height: 2 m
• Detection angle: 120 °
• Sneak-by guard: No
• Capability of masking out individual segments: Yes
• Reach, radial: r = 3 m (9 m²)
• Reach, tangential: r = 10 m (105 m²)
• Twilight setting TEACH: No
• Twilight setting: 2 – 2000 lx
• Time setting: 8 s – 35 min
• Switching output 1, resistive: 500 W
• Switching output 1, number of LEDs / fluorescent lamps: 4 stk.
• Constant-lighting control: No
• Basic light level function: No
• With remote control: No
• Interconnection: Yes
• IP rating: IP54
• Material: Plastic
• Ambient temperature: -20 – 50 °C
• Colour: white
• Colour, RAL: 9001
• Version: white

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
