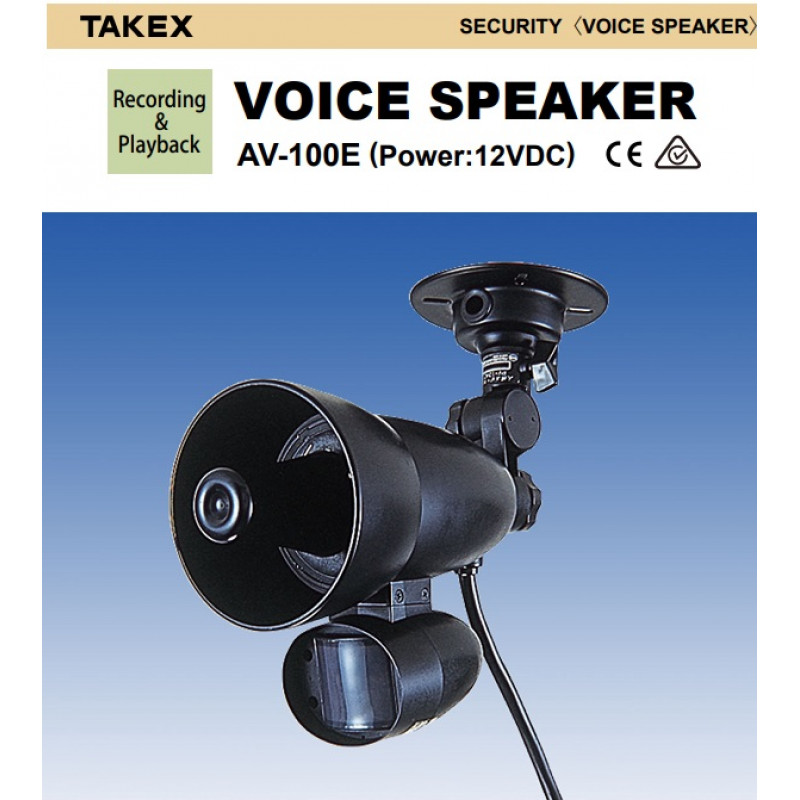

TAKEX (AV-100E) 100dB Horn Speaker, Requires N/O Trigger for Activation
- Brand:Takex
- Product Code:AV-100E
- Availability:Please Call or Email Us to Check Availability
TAKEX (AV-100E) 100dB Horn Speaker, Requires N/O Trigger for Activation
The AV-100E is a horn-type speaker with built-in microphone. A N/O input is required to trigger the playback of your recorded message.
Use to provide welcome messages, protect emergency doors, deter intruders, or to trigger warning messages.
- Requires N/O input to trigger
- Record a message (up to 12 secs.) using built-in microphone
- Omni-directional bracket
- Memory back-up for 20 days without power
- Horn speaker type 100dB/1m (max)
| SPECIFICATIONS | |
|---|---|
| Type |
Voice Speaker
|
| Supply voltage |
10 to 14VDC (non-polarity)
|
| Current consumption |
20mA or less (Stand by)
500mA or less (Max.) |
| Alarm input |
Dry contact relay: N.O. (contact capacity: 10mA)
|
| Sound synthesis method |
PCM method
|
| Record method |
Built-in condenser microphone
|
| Record / Playback time |
Max 12 secs.
|
| Sound output |
Operation:
One-shot playback (12 sec.) by alarm input signal (No retrigger during playback) Sound volume: Max.100dB/2W(1m ahead) at right recording level Adjustable from 0 to Max by volume switch |
| LED indicator |
(During recording) Recording level is indicated:
good: flashing, too low: Lights on, too loud: off (During playback) Light on during playback time (12 sec.) |
| Sound volume control |
Variable from zero to max.
|
| Mounting position |
Indoor / outdoor (rainproof)
|
| Weight |
Approx. 1000g
|
| Appearance |
Resin (Black)
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
- 20℃ to + 50℃ without condensation and freeze
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
