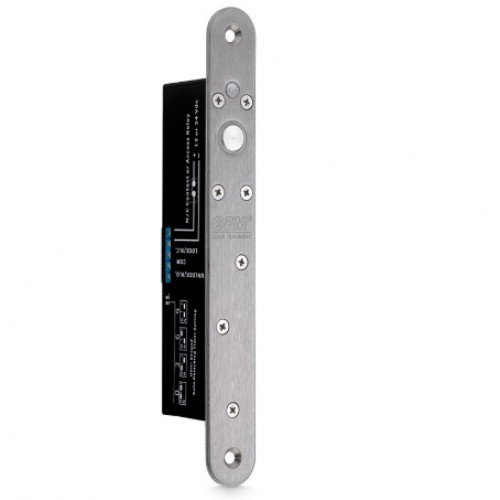

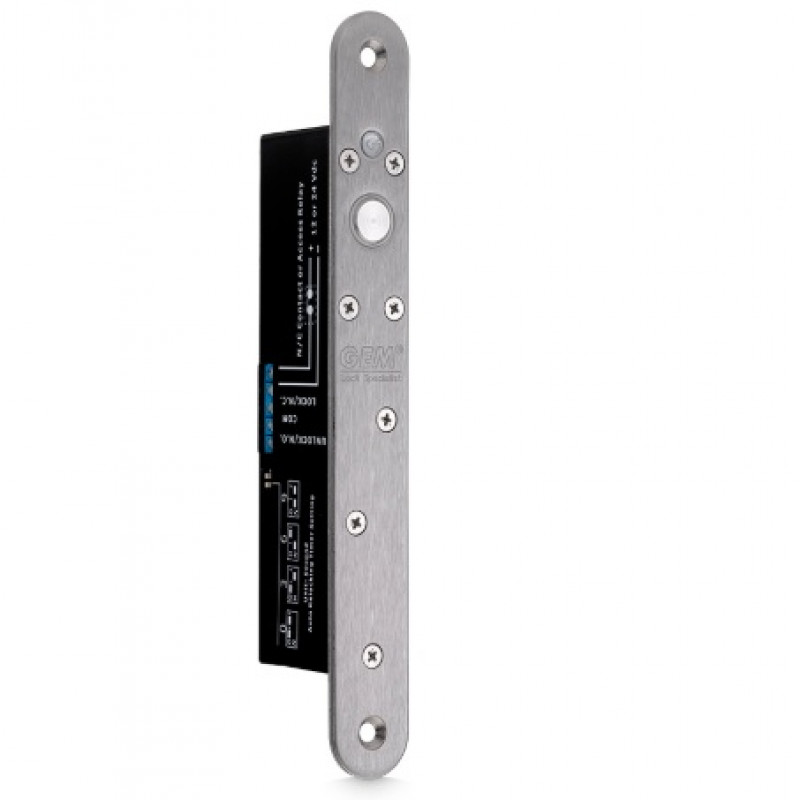

SSP, EB180, 12-24Vdc Fail Safe 25mm Wide Solenoid Bolt
- Brand:ICS
- Product Code:EB180
- Availability:Please Call or Email Us to Check Availability
SSP, EB180, 12-24Vdc Fail Safe 25mm Wide Solenoid Bolt
This Solenoid bolt provides a secure locking method for single or double-action doors, and includes door position monitoring and variable re-locking delay.
Key Features:
- Fail safe operation (power to lock)
- Round-ended stainless steel face plate
- Door position monitoring
- Variable re-lock delay
- Mortice installation
- Low holding current
- Anti-tamper design
- Suitable for single or double-action doors
Technical Information:
- Input voltage: 12-24Vdc ±10%
- Activating current 900mA @ 12Vdc
- Holding current 300mA @ 12Vdc
- Monitoring contacts: SPDT (COM, NO, NC) rated 3A @ 30Vdc
- Re-lock delay settings: 0s, 3s, 6s, 9s
- Bolt diameter 15.5mm
- Bolt throw 16.5mm
- Operating temp: -10°C to 45°C
- Humidity: 0~95% non-condensing.
