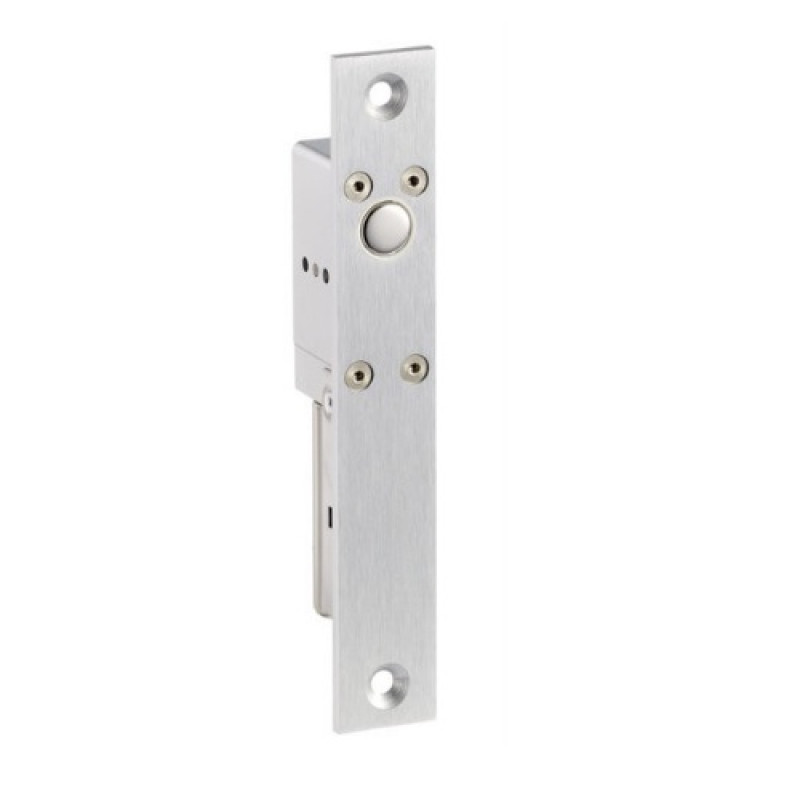

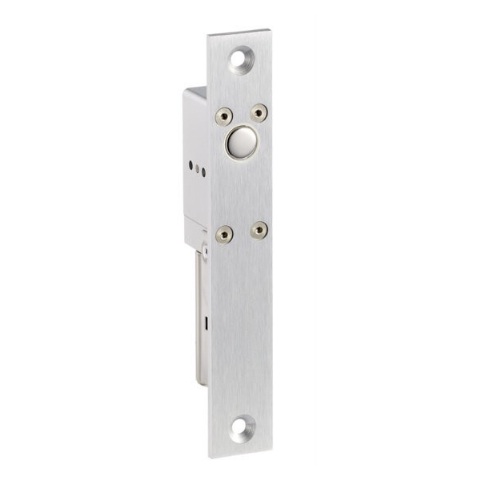

SSP, EB133, 12Vdc Fail Safe Solenoid Bolt with Monitoring

SSP, EB133, 12Vdc Fail Safe Solenoid Bolt with Monitoring

The EB133 Solenoid bolt is ideal for Installation in timber or metal doors/door frames. Fail safe operation provides free egress in the event of power failure. Door status contact provides monitoring of whether the door is open or closed.

Key Features:

• Fail safe (= power to lock)
• Stainless steel bolt with tamper proof design
• Stainless steel face plate
• Door position monitoring
• Includes fixing plates for flush mounting in hollow metal frames

Technical Information:

• Dimensions:
  • Main body = 160mm(L) x 25mm(W) x 35mm(D)
  • Keep plate = 90mm x 23mm
  • Bolt: 12.7mm Dia x 16mm throw
• Voltage: 12Vdc
• Current draw
  • Operation current = 880mA
  • Holding current = 160mA
• Door position sensor: NO and NC
