ICS, FR-EB300, Electric Bolt - Surface - 12VDC

ICS, FR-EB300, Electric Bolt - Surface - 12VDC

  • Brand:ICS
  • Product Code:FR-EB300
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

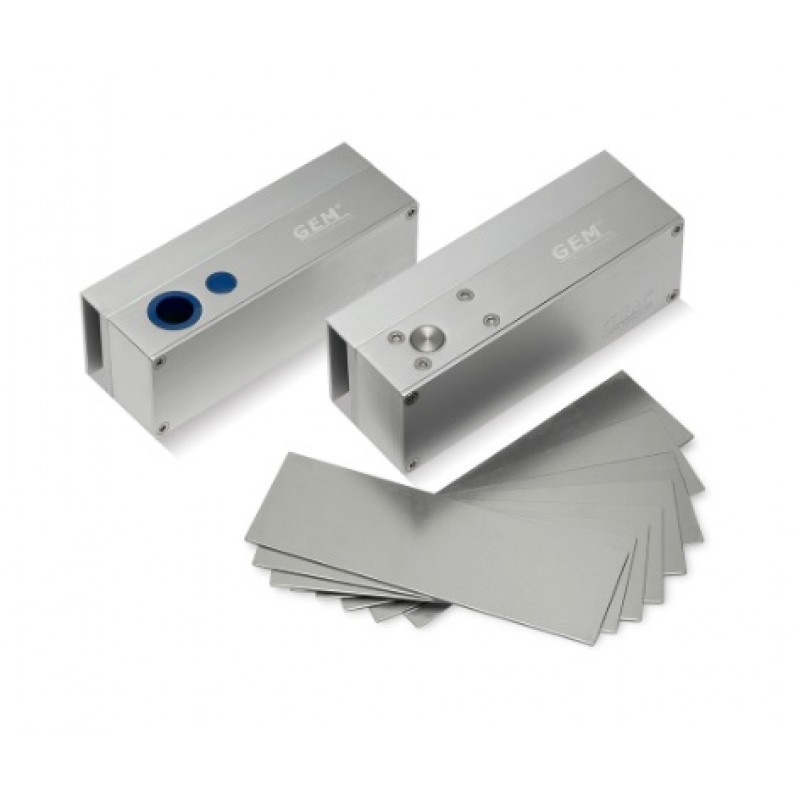

ICS, FR-EB300, Electric Bolt - Surface - 12VDC

The FR-EB300 is a Electric Bolt - Surface - 12VDC

Key Features:

  • FD30 + FD60 Rating
  • Operating voltage 12Vdc
  • Fail-Safe (Power to Lock)
  • Glassdoor applications
  • Auto-relocking timer delay: 0, 3, 6 or 9 seconds
  • Fire rated: BS EN1634:1
  • 1 Hour UK fire certificate
  • Voltage tolerance: ±10%.
  • Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20°C).
  • Operating temperature: -10~45°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Door position status output indicates door opened or closed status (Reed rated 0.25A at 30Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Tested to 500,000 cycles.

Specifications:

  • Dimensions : 166 × 56 × 32 mm.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
