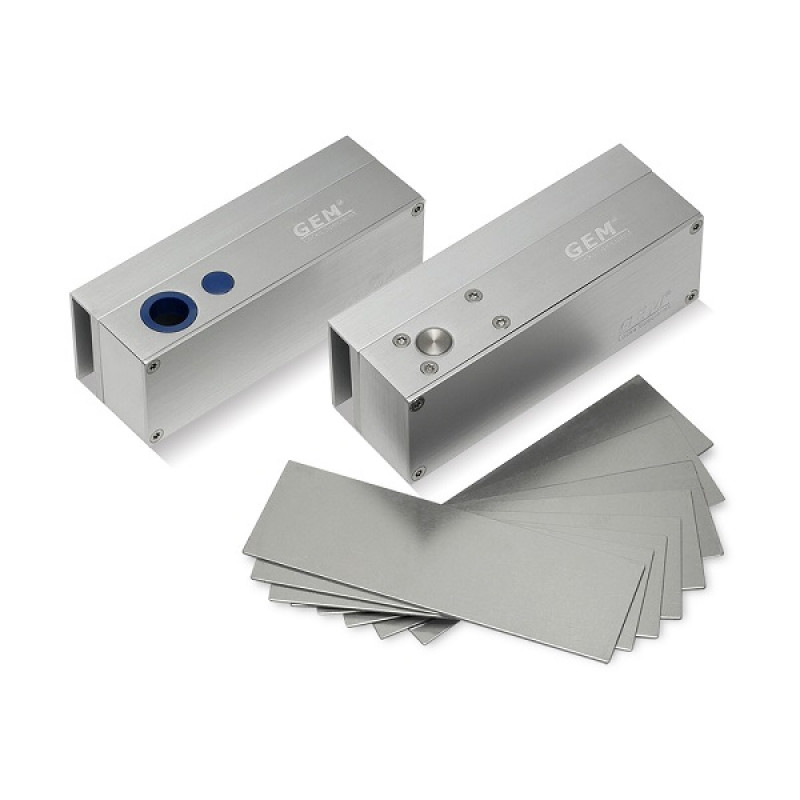

ICS, EB300, 12Vdc Fail Safe Surface Mount Electric Dropbolt

ICS, EB300, 12Vdc Fail Safe Surface Mount Electric Dropbolt

The EB300 Electric Dropbolt Locks are the most common locks which compatible with virtually any access control system without additional optional brackets and they are available in failsafe and fail-security modes. Fully concealed mounting feature enhanced aesthetic appearance.

Specifications:

• Fail-Safe Version (Power to Lock)
• Power Input: 12 V DC
• Voltage Tolerance: 10%
• Current Draw:
  • Pull in: 0.9A, Holding: 0.3A@12V DC at temperature 20
• Door Position status output (Reed rated 0.25A@30VDC)
• indicates door opened or closed status.
• Operating Temperature: -10~+45
• Humidity: 0~95% non-condensing.
• Lock's surface Temperature (when the power is on):
  • current temperature +20
• Tested to 500000 cycles.
• Autolock Time Delay : 0, 3 ,6 ,9seconds

For more details, please refer with our attached datasheet.
