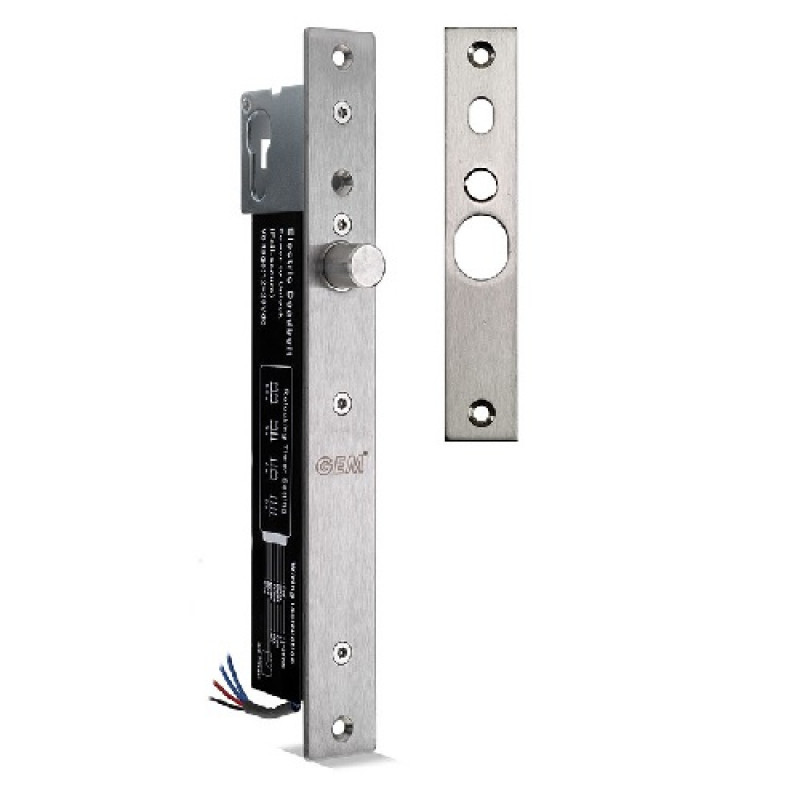

ICS, EB260-N, Solenoid Bolt With Key Over-ride Fail Secure
- Brand:ICS
- Product Code:EB260-N
- Availability:Please Call or Email Us to Check Availability
ICS, EB260-N, Solenoid Bolt With Key Over-ride Fail Secure
Electric Drop Bolt
Key Features:
- Operating voltage 12Vdc
- Stainless Steel
- Fail-Secure (Power to Unlock)
- Euro profile key over-ride
- Tested to 500,000 cycles
- Auto-relocking timer delay: 0, 3, 6 or 9 seconds
Specification:
- Voltage tolerance: ±10%.
- Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20%(when power is on).
- Magnetic bolt status output indicates bolt locked or unlocked status (SPDT rated 3A at 30Vdc).
- Humidity: 0~95% non-condensing.
- Horizontal or vertical installation.
- Faceplate material: Stainless Steel.
- Dimensions: 225 × 42 × 41 mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
