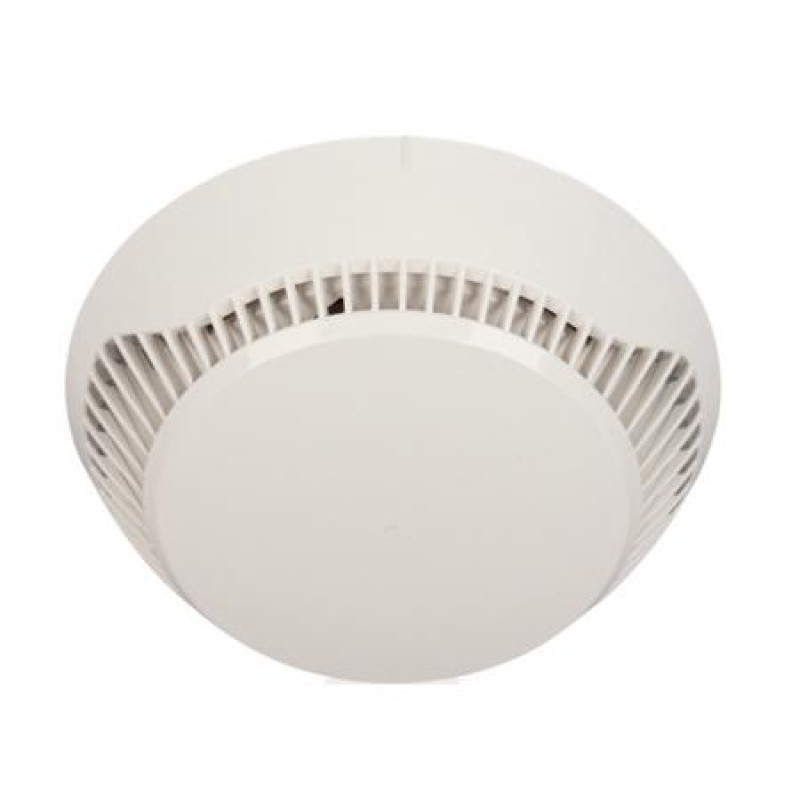

MAGfire (MAGPRO-HD1) Addressable Heat Detector

MAGfire(MAGPRO-HD1) Addressable Heat Detector

Key Features:

• Can work as a fixed temperature or rate of rise detector
• Class A1R, A2S, BS selectable from the control panel
• Day/Night mode
• Protected area - up to 35m2
• Installation height - up to 3.5m
• Low profile design
• LED indication with 360° visibility
• Certified to EN54–5
• Base ordered separately see MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS

Technical Specifications:

Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Quiescent State No Communications: <130uA @ 27VDC
Consumption in Quiescent state with comms: < 180uA @27VDC
Consumption in Alarm State with Comms: 6.5mA
Class, Selectable from Control Panel: A1R A2S BS
Protected area(in accordance with EN54-5): up to 56.3m²
Output in alarm state at terminal RI: 7.5mA (MAX) 7.5V
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating Temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP30
