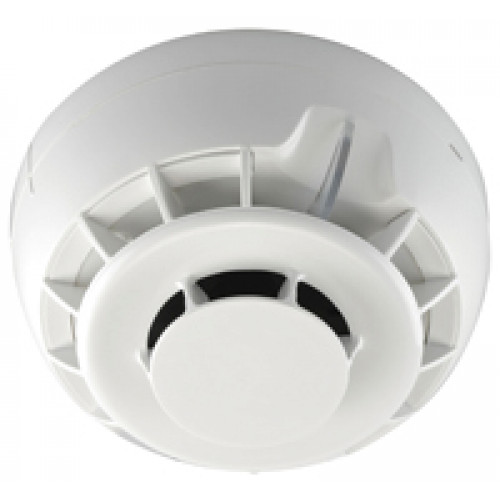

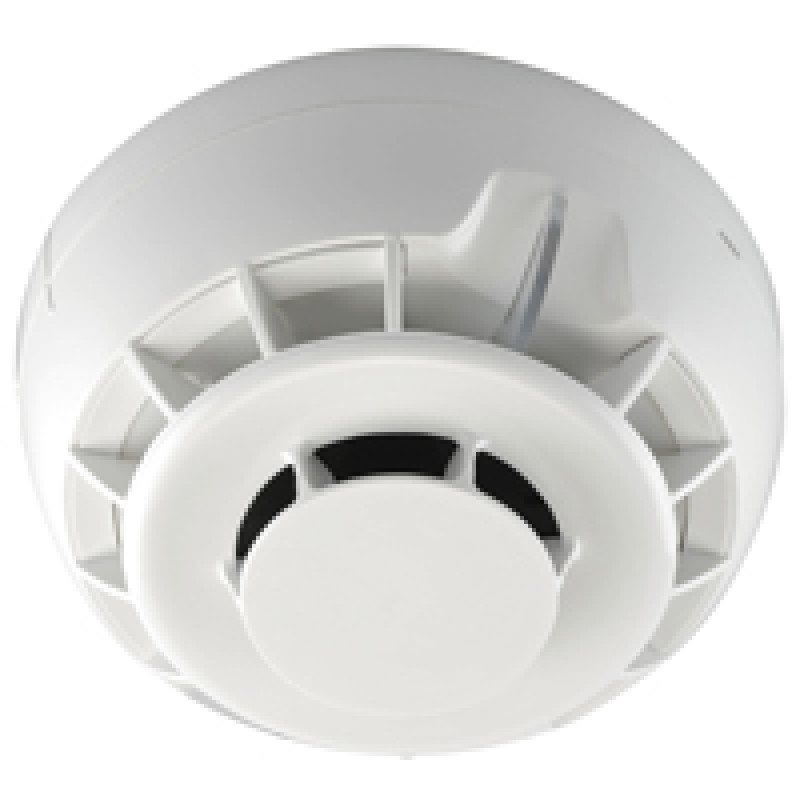

ESP (CSD2) Combined Optical Smoke and Fixed Heat Detector
- Brand:ESP
- Product Code:CSD2
- Availability:Please Call or Email Us to Check Availability
ESP (CSD2) Combined Optical Smoke and Fixed Heat Detector
These Fireline detectors have been developed to provide a perfect compliment to the Fireline MAG panels. All detectors are supplied with a diode base.
Technical Specifications:
- Description : Combined smoke/heat
- Type : Conventional
- Approval : EN54-7, EN54-5
- Class : A1R
- Operating Voltage : 9 - 30VDC
- Standby Current @ 24V : < 60μA
- Alarm Current @ 24V : 49mA
- Wire Gauge : 0.4mm - 2.0mm TWIN
- Operating Temperature : -10°C to 60°C
- Test Facility : Simulated Smoke/ Heat
For more details, please refer with our attached datasheet.
