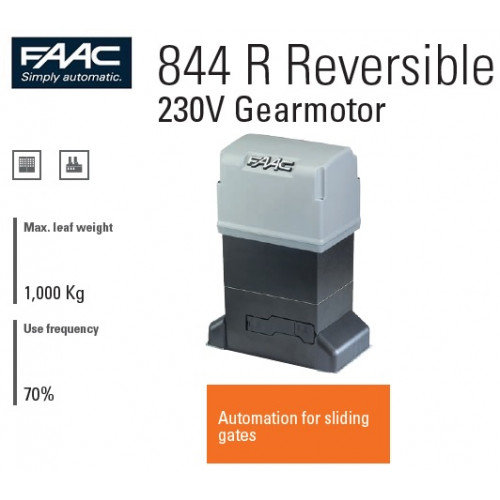

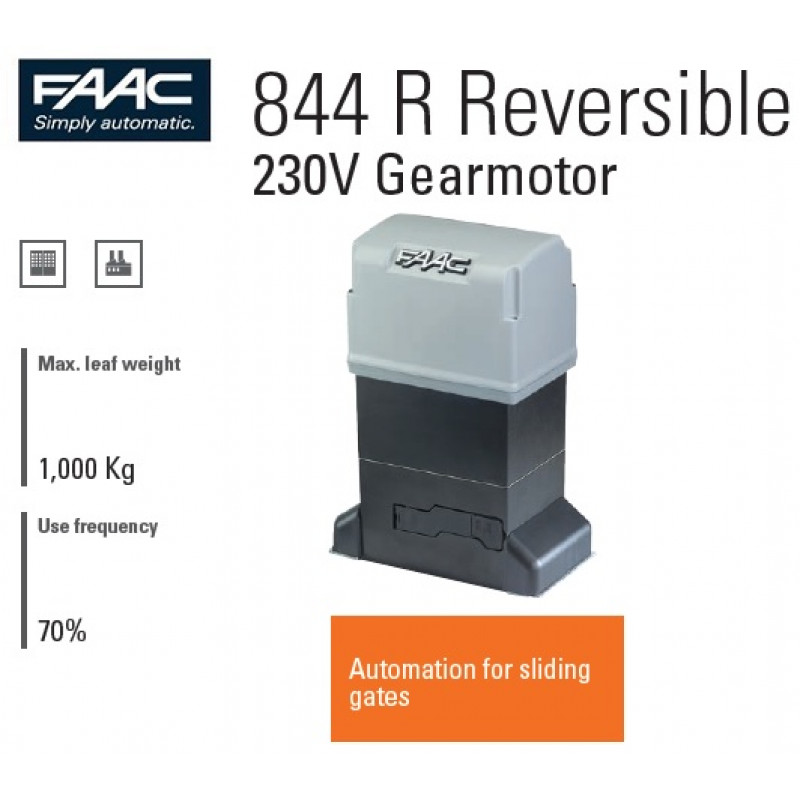

FAAC (109897) 844 R Reversible Operator (1000 Kg)
- Brand:FAAC
- Product Code:109897
- Availability:Please Call or Email Us to Check Availability
FAAC (109897) 844 R Reversible Operator (1000 Kg)
844 R Reversible includes: a gearmotor designed for on-rack application with pinion, limit switch magnets for mechanical assembly, release key, covering carters.
- Reversible: when no power is supplied to the motor, the sliding leaf can always be moved manually.
- An electric lock is needed to grant hold in closing
- Twin-disk clutch in oil-bath (anti-crushing safety device)
- Inductive limit switch
- Key protected lever release device.
- for gates with max weight 1000 Kg.
|
Model |
844 R Reversible |
|
Power supply voltage |
220-240V~ 50/60 Hz |
|
Max. power |
550 W |
|
Traction and thrust force |
0÷68 daN (Z12) |
|
Motor rotation speed |
750 cycles/min |
|
Reduction ratio |
1:10 |
|
Operating ambient temperature |
-20°C ÷ +55°C |
|
Weight |
14.5 Kg |
|
Protection class |
IP 44 |
|
Type of oil |
FAAC HP OIL |
|
Max speed |
11,6 m/min (Z12) |
|
Thermal protection |
140°C |
|
Limit switch |
Magnetic |
|
Twin-disk |
Twin-disk in oil-bath |
|
Type of treatment |
Cataphoresis |
|
Dimensions (LxDxH) |
277 x 155 x 388 mm |
|
Max. leaf weight |
1.000 kg |
|
Use frequency |
70% |
|
Electronic equipment |
Not included |
(*) data referred to 230V~ 50Hz.
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
