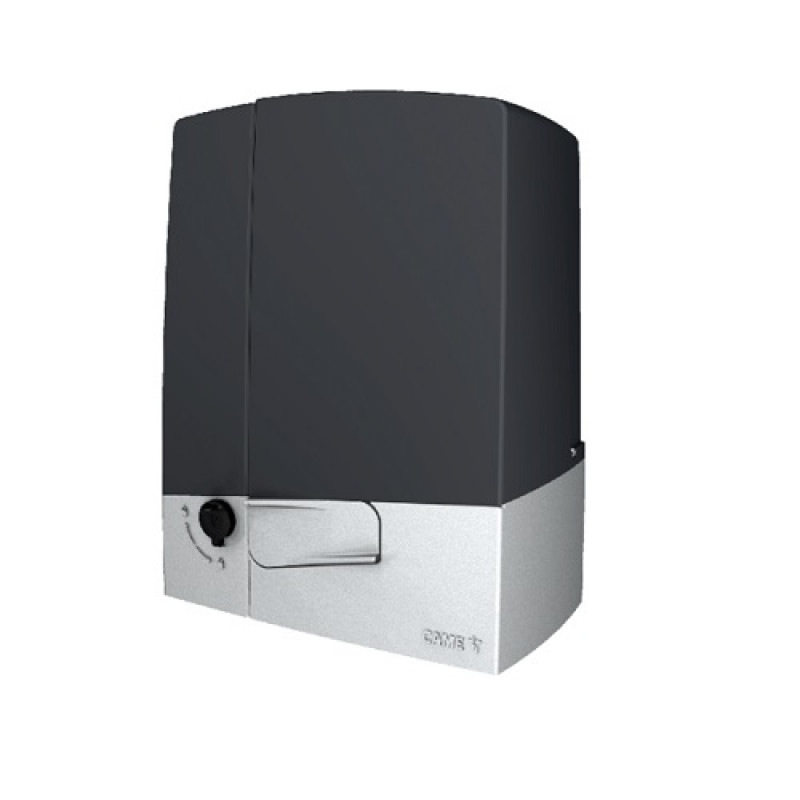

CAME (801MS-0280) BXV06RGS Sliding Gate Motor 110V / 24V up to 800kg

CAME (801MS-0280) BXV06RGS Sliding Gate Motor 110V / 24V up to 800kg

BXV08RGS - Automation with 24 V engine, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 800 kg and 20 m in length. RAL7024 grey cover.

Key Features:

• 4 motors, all with encoder control also available in the Rapid version.
• The 400 and 600 kg versions comply with current standards on impact forces.
• Can operate in emergency mode during power outages.
• Can retrofit magnetic limit-switches and heater for extreme weather conditions.
• Control board, with separate terminal board and display, for simpler installing and diagnosing. Save up to 250 different users.
• On-board Rolling Code and (Twin) Key Code radio-frequency decoding.
• It manages RIO System 2.0 wireless safety accessories via the 806SS-0040 accessory.
• Self-diagnosing safety devices – whether wireless or not.
• Set up to run CAME KEY and to connect to the cloud via CAME Connect.
• Used to directly manage CAME key pads using the R800 accessory or connect CAME transponder selectors using the R700 accessory.
• Connection used with the RSE accessory.
• Also available with magnetic limit-switches.
• The operator can be managed from a remote location via app through the CAME GATEWAY.
• New key-protected, manual, mechanical system to release the gate leaf.
• ZN7 control board, with separate terminals, and display, for easier start-ups and diagnoses.
• Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
• It handles up to 25 Rolling Code users.
• Ready to fit magnetic limit-switches and heater unit for extreme weather applications.
• It is set up to connect to the wireless Rio safety system.

Technical Specification:

• Protection rating (IP): 44
• Power supply: 110AC
• Power supply to motor (V): 24DC
• Power (W): 400
• Manouvering speed (m/min): 11 MAX
• Duty/cycle (%): HEAVY-DUTY SERVICE
• Thrust (N): 800
• Operating temperature (°C): -20 ÷ +55
