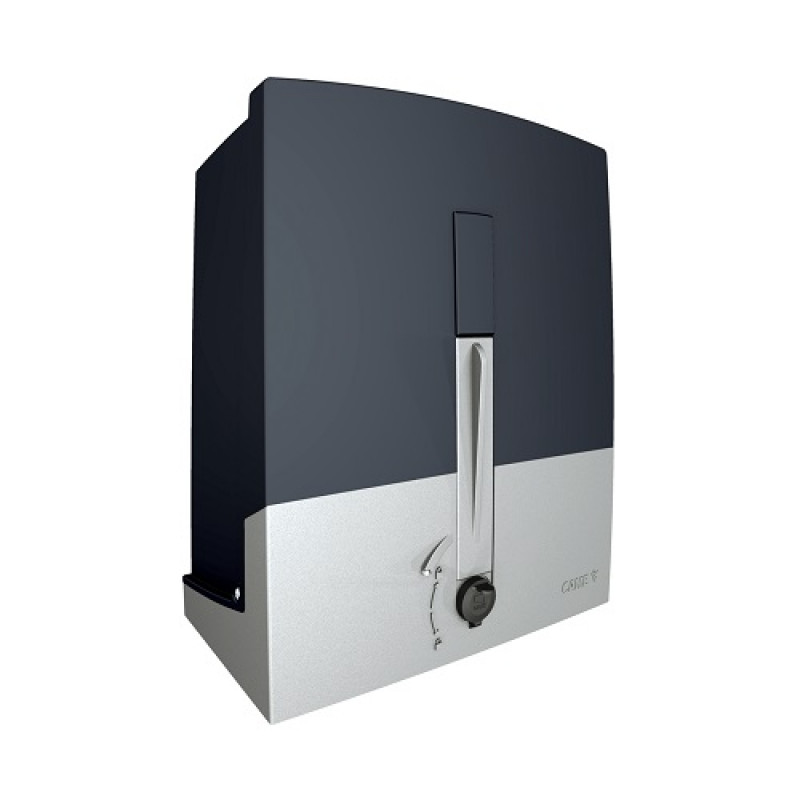

CAME (801MS-0140) BXL04AGS Sliding Gate Motor - 24V up to 400kg

• For complying with current Standards on impact forces.
• Operator with encoder-based movement control.
• It can operate in emergency mode during power outages.
• Self-diagnosing, hardwired safety devices.
• Control board, with separate terminals and function-setting dip-switches. Save up to 25 different users.
• On-board rolling code decoding.
• It can connect CAME-range hardwired keypads via the R800 accessory.
• A single version, with encoder-based control, for gates weighing 400 kg and measuring up to 10 m.
• Safety is ensured by the encoder's movement control function.
• It works even during power outages by fitting emergency batteries in the specific housing.
• Built-in ZN6 control board with separate terminals and dip-switches make for easier programming and start-up.
• Directly settable functions, such as closing times, speed and sensitivity.
• It can handle up to 25 Rolling Code users.
• Plug-in connectors for the R800 control board and AF receiver.

Technical Specification:

• Protection rating (IP): 44
• Power supply (V - 50/60 Hz): 230 AC
• Power supply to motor (V): 24 DC
• Absorption (A): 7 MAX
• Power (W): 170
• Duty/cycle (%): 50
• Thrust (N): 350
• Operating temperature (°C): -20 ÷ +55
