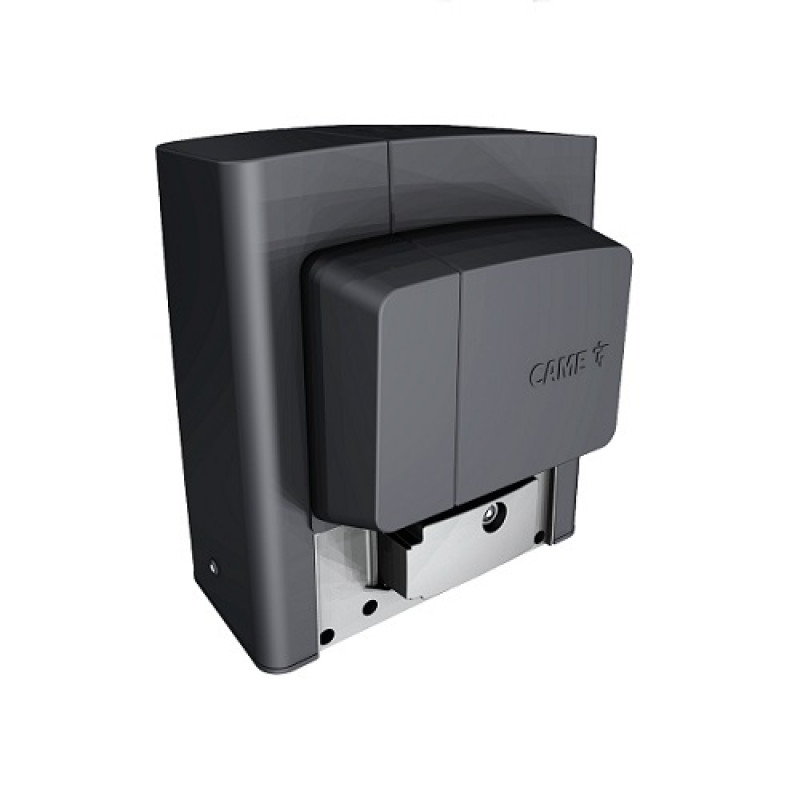

CAME (801MS-0110) BKS18RGS Sliding Gate Motor - 110V Up to 1800kg

CAME (801MS-0110) BKS18RGS Sliding Gate Motor - 110V Up to 1800kg

BKS22AGS - Automated operator featuring a control board with programming display, on-board radio decoding and mechanical limit-switches for sliding gates up to 2,200 kg in weight and 20 m in length.

Key Features:

• A complete, flexible and safe range to meet different needs, from industrial to heavy-duty operating conditions.
• Module 4 or 6 pinions for constantly smooth, linear transmission of movement to the rack.
• It can fit magnetic limit-switches.
• Control board, with separate terminals and a display, for easier start-ups and diagnoses. Save up to 250 different users.
• On-board Rolling code and Key Code (Twin) radio decoding.
• The safety inputs can be configured to directly control the 8k2Ω resistive sensitive-safety edges.
• Control Rio-series wireless safety-devices via the specific plug-in device.
• Self-diagnosing safety devices – whether wireless or not.
• Devices designed for connecting to the Cloud, via CAME Connect.
• It directly manage CAME keypads via the R800 accessory or connect up CAME transponder selectors via the R700 accessory.
• The triphase-powered version for 2,200 kg gates is available
• Compatible with CAME KEY.
• The movement speed is 10.5 m/minute.
• The operator can be managed from a remote location via app through the CAME GATEWAY.
• Available with module 4 and 6 pinion to ensure sturdiness and better quality of movement.
• Built-in ZBKN control board with display and memory roll, for easier programming and start-up.
• Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
• It handles up to 25 Rolling Code users.
• Self-diagnosing safety devices.
• It is set up to connect to the wireless Rio safety system.
• Compatible with CAME KEY.
• OPERATIONAL LIMITS - LIMITES

Technical Specification:

• Protection rating (IP): 44
• Power supply (V - 50/60 Hz): 110 AC
• Power supply to motor (V): 110 AC 50/60 Hz
• Absorption (A): 4.2
• Power (W): 480
• Manouvering speed (m/min): 10,5
• Thrust (N): 1150
• Operating temperature (°C): -20 ÷ +55
• Motor’s heat protection (°C): 150
