Fike, 326-0003, Sita Stand Alone Sounder - Deep Base

Fike, 326-0003, Sita Stand Alone Sounder - Deep Base

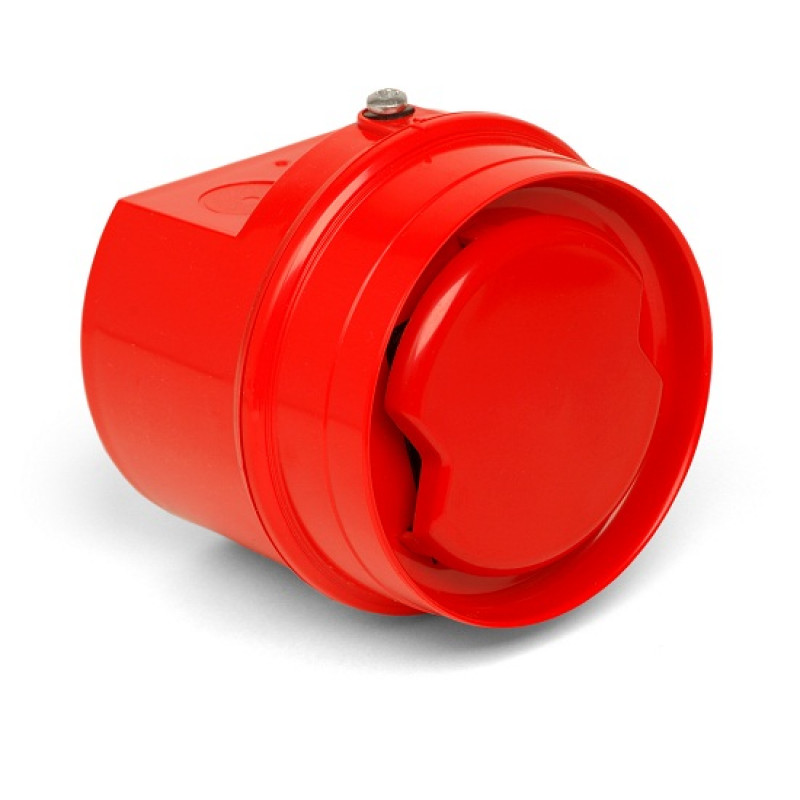

Sita Sounder: Deep Base, Stand-alone sounder with 88dB output, three sound patterns and inbuilt short circuit isolator. Supplied complete with red mounting base.

The addressable Sounder Strobe allows a simple and effective visual indication directly from the addressable loop. Whilst in alarm the Sounder Strobe synchronisation is uniquely reset every 10 seconds to ensure that the beacon’s flash rate remains in absolute synchronicity across the entire system. The Sounder Strobe offers the choice of 7 different sound patterns and 3 volume levels. The addressable Sounder Strobe is ideal for areas that do not require automatic detection, and is available in a choice of 2 colours, red or white. Audible and Visual warning is available in this compact unit that is easy to install.

Specifications:

Dimensions:

• Diameter: 97mm

Depth:

• Low Profile Base: 60mm
• Deep Base: 82mm

Sounder Volume:

• Low: 65dB(A) +
• Medium: 80dB(A)
• High: 85dB(A)

System Compatibility:

• SITA200plus: V2.30 onwards
• Duonet and Quadnet: V1 onwards

Loop Current @ 24V DC / DLU Rating:

• Active: No Sounder 18.750mA / 9 DLU
• Active: Low Sounder 19.792mA / 9.5 DLU
• Active: Med Sounder 23.958mA / 11.5 DLU
• Active: High Sounder 28.125mA / 13.5 DLU

Operating Temperature: -10°C to +50°C.

Voltage Range: 24V to 42V DC

Strobe Operation: 5ms on / 1s interval
