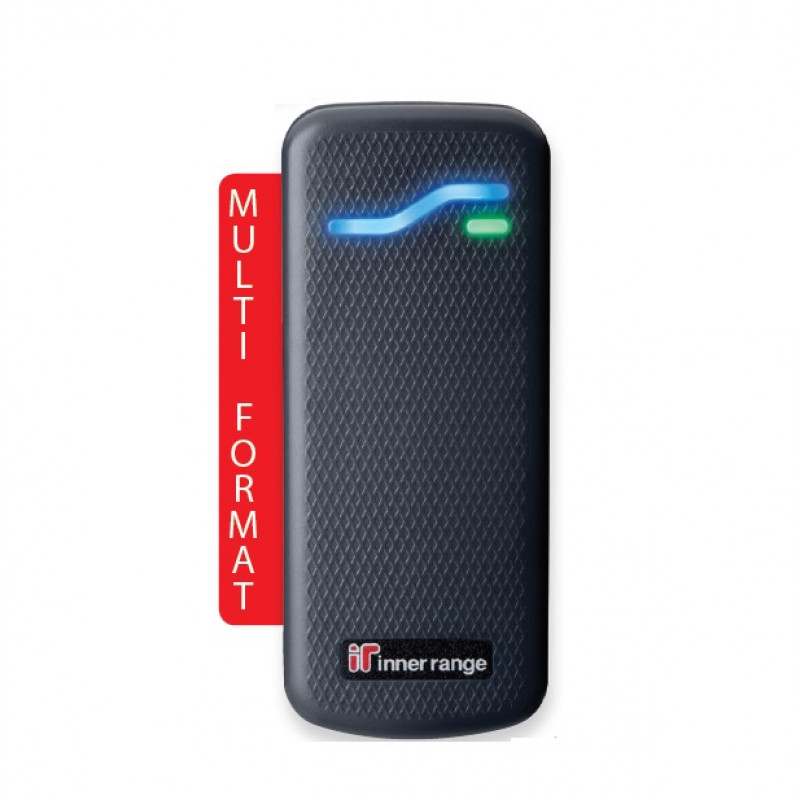

INTG-994720MF, SIFER Multi-Format RS-485 Smart Card Reader

Multi-Format Version: The SIFER Multi Format Card reader offers an identical set of features to the Standard SIFER Reader with additional support for reading the CSN of third party 13.56Mhz credentials.

The SIFER Multi Format Card reader offers an identical set of features to the Standard SIFER Reader with additional support for reading the CSN of third party 13.56Mhz credentials.

The SIFER card reader is a Smart Card reader designed and manufactured by Inner Range. It is a multi-drop RS-485 based reader that employs 128 bit AES encryption from the card through to the door module, providing a far superior level of security than that of traditional Wiegand based card readers. SIFER readers utilise the MIFARE® DESFire® EV1/EV2 card format.

As SIFER readers utilise a superset of the OSDP protocol, the readers may also be deployed on any system capable of using OSDP.

Up to 16 SIFER readers may be connected in series to the dedicated RS-485 reader port on the Integriti Intelligent LAN Access Module (ILAM) or the new Integriti Access Controller (IAC) for full Reader-In and Reader-Out operation. Up to 4 SIFER readers may be connected to the Integriti Standard LAN Access Module (SLAM).

SIFER readers are IP 67 rated and available with site specific encryption keys.

User Programmable cards allow an installer to customise the card number, site code and specify their own site-specific encryption key. Inner Range also offers Pre-programmed cards and Custom Programmed cards where site specific programming, printing and encryption options can be selected when ordering batches of cards from the factory.

Features

• Ability to read the CSN (Card Serial Number) of 13.56Mhz credentials**
• Secure 128bit AES Encryption
• Encrypted from Card to Access Module
• MIFARE® DESFire® EV1/EV2 Card Format
• Water & Dust Resistant to IP67
• Vandal Resistant (fully potted)
• Flexible LED Assignment
• Audible Buzzer (can use as DOTL)
• Multi-drop RS-485 Reader LAN
• Individual Reader Heartbeat Monitoring
• Integriti Auto Reader Discovery
• OSDP Compatible
• Compatible With Inner Range Encrypted SIFER Cards
• Support For Custom Site Codes and Site Specific Encryption
• User Programmable Cards Offer Great Flexibility For Installers
• Global Configuration from Integriti Software (including firmware updates)
• Read-Write Functionality
• Small Footprint (dimensions: 39 (W) x 93 (H) x 15 (D) mm)

**Multi-format version only - Additional formats for 3rd party card technologies may be added in future.

The SIFER Reader connects to the host module via multi-drop RS-485 cabling. Up to 16 Readers can be connected on the same Reader RS-485 bus.

Communication is via the industry standard and non-proprietary Open Supervised Device Protocol (OSDP) allowing the SIFER Reader to be compatible with other brands of Access Controllers and share the bus with other manufacturer’s OSDP devices.

When used in an Integriti or Inception system, enhanced OSDP allows for automatic addressing and firmware upgrades over the wire.

SIFER Reader with the Integriti & Inception Systems

• Up to 4 x SIFER Readers can be connected to the Integriti 2 Door - Standard LAN Access Module (SLAM)
• Up to 16 x SIFER Readers can be connected to the Integriti 2~8 Door - Intelligent LAN Access Module (ILAM)
• Up to 16 x SIFER Readers can be connected to the Integriti 2~8 Door - Integriti Access Controller (IAC)
• Up to 8 x SIFER Readers can be connected directly to the Inception Controller (Inception)
• Any SIFER Reader can be mapped to any door on the Controller or Access Module

Three card ordering options are available:
1. SIFER-P: Pre-programmed ‘stock’ cards with card number printed. The most cost-effective option but card customisation is not supported. With more than four billion card numbers available each SIFER-P card is guaranteed to be unique.
2. SIFER-U: User Programmable cards that allow an installer to customise the card number, site code and use their own encryption key. Printed with factory card number.
3. SIFER-C: Custom batch orders configured by the factory according to the specified card number range, site code, encryption key and printing options. Cards cannot be re-programmed at a later stage by the installer or the factory.

For more details, please refer with our attached datasheet.
