Eaton, COMPACT-KIT, i-on Compact Audible Kit

Eaton, COMPACT-KIT, i-on Compact Audible Kit

A wireless intruder panel built with cybersecurity in its DNA. The Compact is Eaton Secureconnect™enabled.

SecureConnect is a smart intruder system, protecting people and property against physical and digital threats.

Connect the Compact to the installer Cloud and end user App to ensure you and your customer are securely connected to what matters most.

A smart, entry-level solution for homes . . .

• Single box solution - reducing installation time
• Eaton SecureConnect™ enabled -  increase your revenue stream with 24/7 remote access to Cloud and customer App
• Low profile discreet design - provide your customers with a non-intrusive alarm system to fit in any location within their home
• 40 years scantronic radio expertise - you can depend on
• Future Flexible - as new features are introduced you can update the system remotely or locally
• Field proven tried and tested i-on platform giving you a common interface across the i-on family
• Built in Ethernet IP - for flexible and secure communication options
• EN50131 Grade 2 independently approve

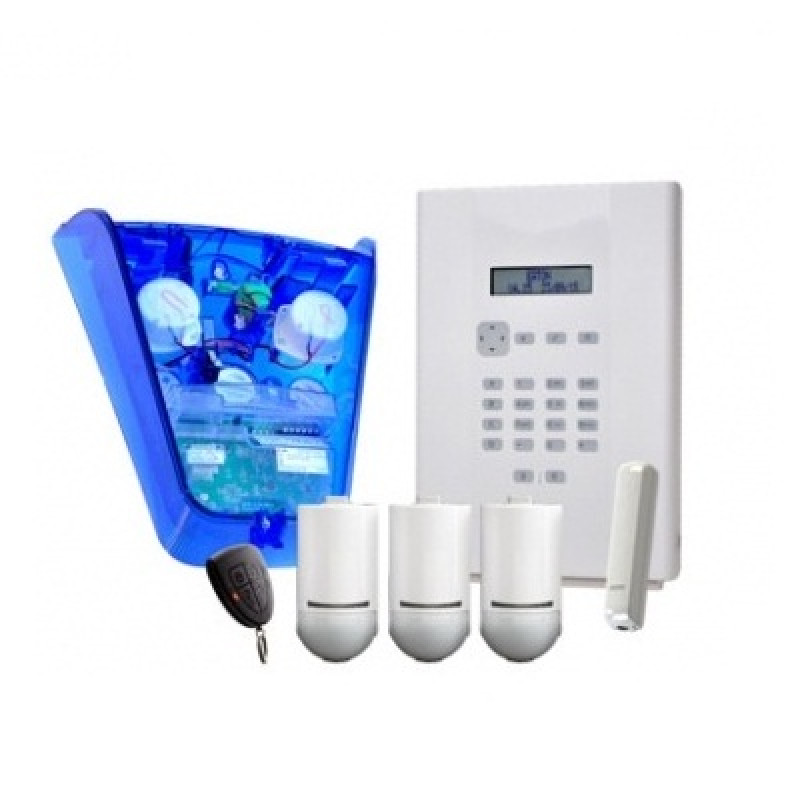

Kit contents:

• 1x COMPACT
• 3x XCELRPT
• 1x DET-RDC-W
• 1x FOB-2W-4B
• 1x SDR-REXT-BL-NC

(COMPACT) i-on 20 Zone Wireless Radio Panel with Integrated Keypad

An integrated wireless intruder panel with built-in Ethernet IP communications, offering flexible and secure communication options.

Built with cyber security in its DNA the i-on Compact is Eaton SecureConnect™ Cloud and App enabled.

Multiple communication options
Built-in IP and optional PSTN or GSM allow you to tailor installations to the properties needs.

Eaton SecureConnect™ Cloud and App
Control and monitor your panels through the cloud 24/7 anytime anywhere across multiple locations. Provide your customers with a secure App for convenient control of their system ensuring peace of mind.

Visual verification
Connect Eaton security cameras to the compact panel to provide an additional layer of security. Capturing images locally on SD card and view through App or email.

Key Features:

• 20 radio zones
• 40 years of class leading scantronic radio
• Built in Communications (SIA IP ARC) as standard
• Plug on GSM or PSTN module for dual-path communications
• Built in Ethernet port
• Wi-Fi module adaptability
• Third party certified to EN 50131 grade 2
• Compatible with Eaton’s range of radio peripherals
• Easy maintenance with hinged access
• Available in kit format

(XCELRPT) Radio Wireless Grade 2 PET Tolerant PIR Detector

XCEL series of detectors use a single housing design across the range. Whether wired or radio, standard or pet tolerant, these PIRs provide a consistent appearance throughout the installation.

The XCEL PIRs have a specially designed spherical lens that generates five layered beams, combined with a dual element sensor to deliver superior detection and catch performance.  The PIRs are certified to all EN50131 standards, with the radio technology field proven over many years.

The XCEL PIR series is compatible with all current Eaton security control panels.

Technical Specifications:

• EN50131 Grade: 2
• Environmental Class: 2
• PIR coverage: 9m by 90° (Pet)
• Radio range: Greater than 1000m in free space
• Batteries: 1.5v AA alkaline x 2
• Battery life: 40 months
• Pet tolerance: Tolerant to pets up to 25kg (XCELRPT)

(DET-RDC-W) Radio Slimline Door Contact - White

A wireless slimline door contact for detecting threats and alerting system users. Keeping property, people and belongings safe.

Key Features:

• Grade 2 radio product
• 3 years battery life using a CR2 battery
• Flexible installation options
• Independently certified to EN50131 and INCERT
• Sleek and compact design

(FOB-2W-4B) Two-way Wireless Keyfob

The PD6662:2010 compliant two-way keyfob (FOB-2W-4B) and one-way keyfob (i-FOB01) both enable the user to remotely unset/set the system. The two-way keyfob provides feedback on system status and confirms that the system has been set upon exit  whilst the two-way keyfob can be programmed to be used as a panic button.

Both are designed to fit comfortably in your pocket or on a key ring.

Key Features:

• Long-life lithium battery
• Two-way keyfob provides system status
• Replaceable battery
• Enhanced transmission range (FOB-2W-4B)
• Configurable set/unset
• Learnt to user profile not radio zones

(SDR-REXT-BL-NC) Sounder external radio basic blue lens, no cover

A capsule range of external sounders, in three colours, with options for radio, wired and decoy.

Designed for use with i-on and Menvier, new and legacy 868MHz systems. Wired variants also compatible with third-party control units.

Engineer-friendly: a self-supporting lid, built-in spirit-level and revolving fixing holes for ease of installation including on uneven surfaces.
High-power comfort LEDs and LED strobes: provides reassurance for the user.
Common enclosure for entire range: impact-resistant polycarbonate construction in a choice of 3 colours: blue, amber and red.

For more details, please refer with our attached datasheet.
