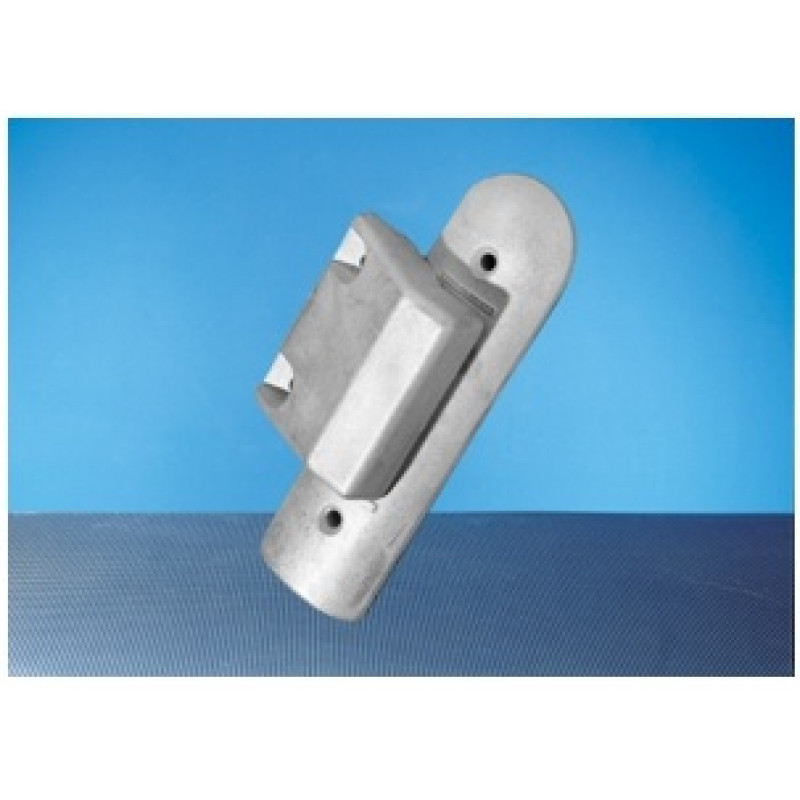

Elmdene, 6RSC-RD, 6 Wire Large Roller Shutter Contact with 4k7/2k2 Resistor (Red), Grade 2
- Brand:Elmdene
- Product Code:6RSC-RD
- Availability:Please Call or Email to Checkout
Elmdene, 6 Wire Large Roller Shutter Contact with 4k7/2k2 Resistor (Red), Grade 2 [6RSC-RD]
Elmdene has an extensive range of high quality Surface Metal Magnetic Contacts.
Contacts with Integral Resistor: [4k7/2k2 Resistor (RED) - Suites for ADE – Bosch – Castle – Dycon - Menvier – Pyronix –Scantronic - Texecom Panels]
Specification:
- Material: Aluminium
- Colour: SILVER
- Environmental Class: III
- Cabled / Terminals: Cabled
- Ferrous Materials: Yes
- Operation Mode: 4 wire - DP 6 wire - FSL & DP
- Single / Multiple Doors: Single or Multiple
- Special Features: Stainless Steel Cable Protection
- Spacers Available: N/A
- Fixing: Screws
- Operating Gap- Minimum Close (mm): 55
- Resistors Fitted: 6 wire version
- Number of Wires or Terminals: 4W or 6W
- Stainless Steel Cable Protection: 50cm
- Encapsulation: No Plotted
- Length (mm): 175
- Width (mm): 52
- Depth (mm): 15
- Magnet: 85 x 70 x 35
- Cable Length(cm): 100
Optional Order Related to this Item Available on Request:
| PART NO | DESCRIPTON |
| 2RSM-2R-1K | Roller Shutter Contact - Anodised Aluminium. 70mm operating gap. 0.5m Stainless Steel, 2 wire. Integral 1k/1k resistors, Contact: 175L x 52w x 15d, Magnet: 85L x 70w x 35d |
| 6RSA-100-BL | Roller Shutter Contact - Grade 2 - Anodised Aluminium. Potted with 1m SS Conduit, 55mm operating gap. Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors. Contact: 150L x 40w x 14d, Magnet: 73L x 60w x |
| 6RSA-100-GN | Roller Shutter Contact - Grade 2 - Anodised Aluminium. Potted with 1m SS Conduit, 55mm operating gap. Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors. Contact: 150L x 40w x 14d, Magnet: 73L x 60w x |
| 6RSC-GY | Roller Shutter Contact - Grade 2 - Anodised Aluminium. Potted with 1m SS Conduit, 55mm operating gap. Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors.Contact: 175L x 52w x 15d, Magnet: 85L x 70w x |
| 6RSC-TX | Roller Shutter Contact - Grade 2 - Anodised Aluminium. Potted with 1m SS Conduit, 55mm operating gap. Integral 3k3/3k3 resistors. For use in FSL or DP systems, single or multiple doors.Contact: 175L x 52w x 15d, Magnet: 85L x 70w x 35d |
| 6RSL-100-GN | Roller Shutter Contact (small) - Grade 2 - Anodised Aluminium. Potted 1m SS Conduit, Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors. 55mm operating gap. Contact: 94L x 40w x 15d, Magnet 50L x 55w |
| 6RSL-100-YL | Roller Shutter Magnetic Contact, Grade 2, IP67, potted 6 wire, 1m SS Conduit, Integral 2k2/2k2 resistors, 55mm operating gap, screw fix. Size: Contact - 93mm x 40mm x 14mm, Magnet - 60mm x 52mm x 35mm. |
| 6RSL-GN-CZ | Roller Shutter Contact (small) - Grade 2 - Anodised Aluminium. Potted 0.5m SS Conduit, Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors. 55mm operating gap. Contact: 94L x 40w x 15d, Magnet 50L x 5 |
