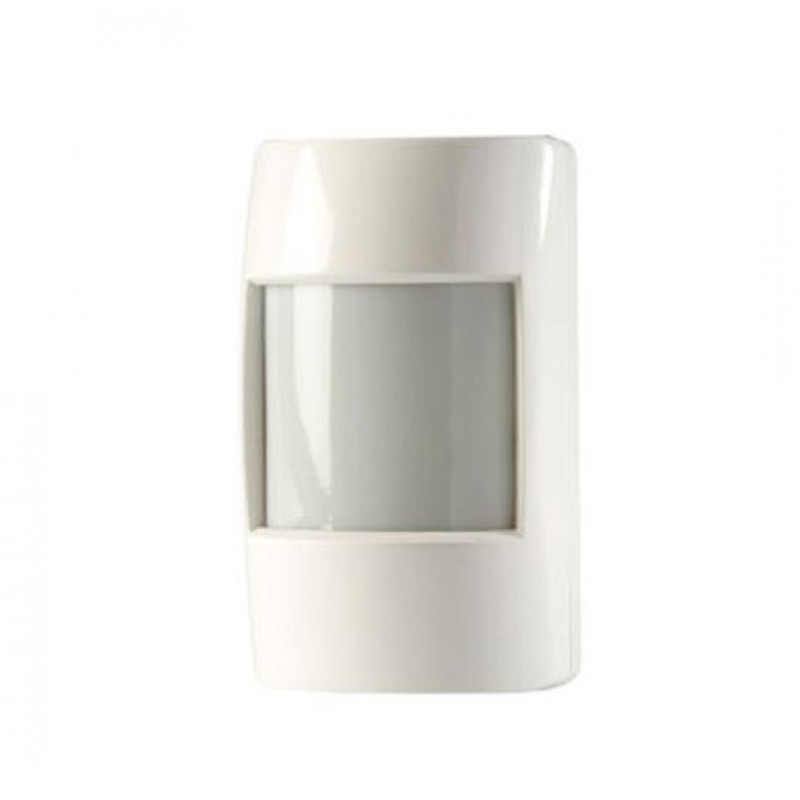

Electronics Line, ELHWQUEST, Quest 14 Metre (Standard) PIR Detector
- Brand:Electronics Line
- Product Code:ELHWQUEST
- Availability:Please Call or Email to Checkout
Electronics Line, ELHWQUEST, Quest 14 Metre (Standard) PIR Detector
The Quest is compact motion detector which features white light filter, selectable pulse count and exceptionally effective RFI immunity, all working together to virtually eliminate false activation.
- Analogue signal processing
- PIR technology
- Temperature shielded pyro sensor
- Dual element
- Temperature compensation
- Full lens library
- Dimensions 8.7x4x4cm
Technical Specifications:
- Technology : PIR
- Pyroelectric Sensor Type : Dual element
- Maximum Range : 14m x 14m
- Current Consumption in Standby : 15mA@12V
- Current Consumption in Alarm : 20mA@16V
- Power Supply : 9 - 16VDC
- Pulse Count : 1,2 or 3 selectable
- RFI Immunity : 40V/m up to 1GHz
- Operating Temperature : 0 º to 60º
- Temperature Compensation : Analog
- Reverse Polarity Protection : Yes
- LED Indicator : Selectable
- Dimensions : 8.7x4x4cm
- Look Down : Yes
- LENS Option : Full lens library
- Relay Parameters : N.C Dry contacts Switching 30Vdc, 0.1A max
