Technical specifications
- Contacts : Changeover NO/COM/NC contacts
- Voltage 12VDC @ 60mA operating
- +/- 10% voltage tolerance
- Printed legend (DOOR RELEASE)
- Button rated IP65 ingress protection
- Momentary operation
- Proximity distance (0-150mm)
- -10° to +60° operating temperature
Features:

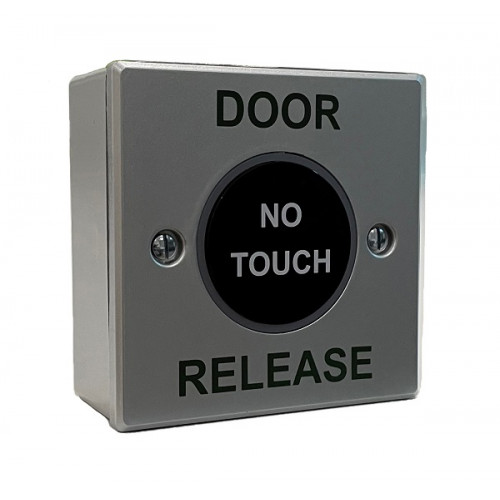

- 44mm touch free sensor button
- Illumination - Red to Green
- Supplied with surface plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general/sensitive areas
- Screw footprint for flush fitting onto a standard back box
- Distance between fixing holes is 60mm
- Supplied with 2 slotted screws
