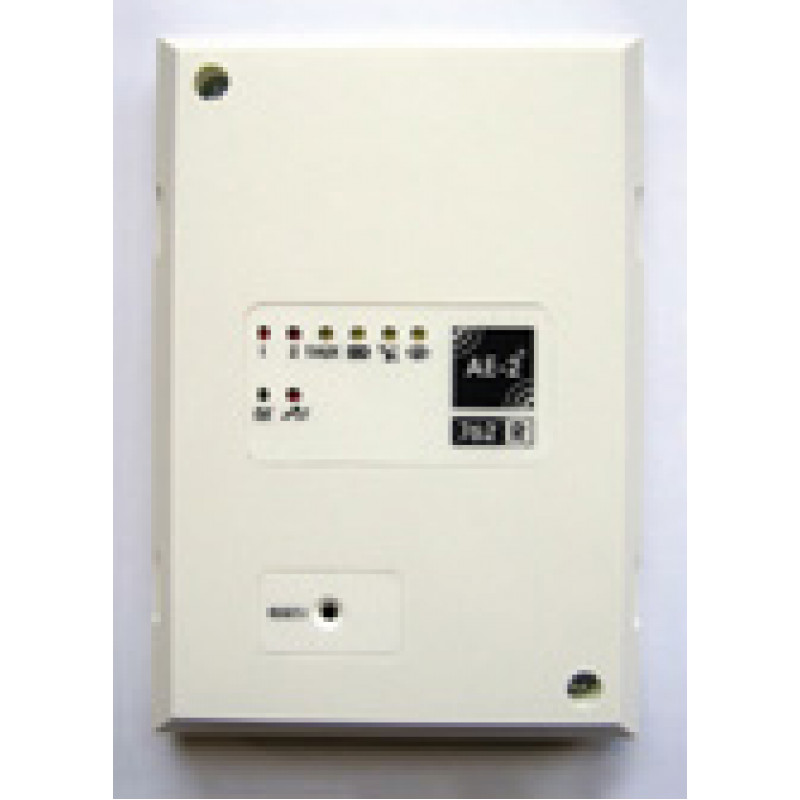

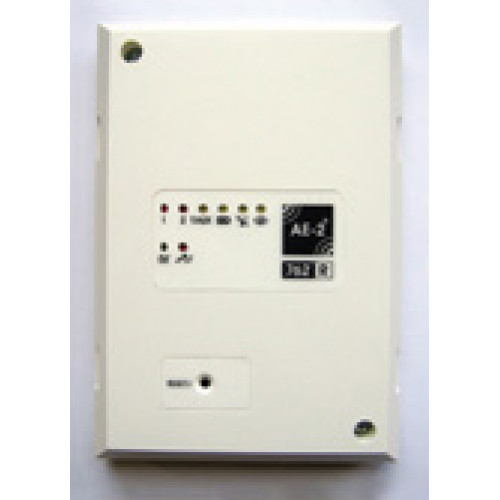

COOPER(Scantronic), 762reur-00, 762reur-00, 2 Channel Narrow Band Programmable Receiver for 700r Series

762reur-00, 2 Channel Narrow Band Programmable Receiver for 700r Series

Overview:

The 762 2-channel narrow-band receiver enables you to see at a glance the status of up to two remote transmitters. Its LED display continuously shows your system’s overall security status. Plus, each transmitter has its own indicator, so you quickly know if one trips or fails to send its regular signal or if a battery has less than one month’s life remaining.

Most importantly, the 762 has numerous applications. These include remotely switching lights and machines on and off, signalling when doors and windows are opened or closed and communicating to your alarm system when someone is attacked.

Compatible with all makes of standard burglar alarm/fire detection/building management systems, this sophisticated receiver puts you firmly in control.

Applications:

• Signal the opening or closing of doors or windows
• Indicate change of state of relays, transistors outputs and other sensors
• Remotely switch lights, doors and machines
• Indicate personal attack button activation
• Connected to any standard burglar alarm system to allow radio contacts/PIR/shock sensors to be added without extra cabling
• Can be connected to many building management systems (BMS) to indicate alarm sensor activation

Specification:

• Channels: 2 Channels, up to four devices per channel (Two single channel transmitters or one 2-channel transmitter recommended)
• LED Indicators: 8 showing Power; transmitter low battery; supervision; jamming; channel activated;tamper activated
• Internal display: Two by seven segment LED. Visible with case open
• Compliance: Product is tested to 1995/5/EC R&TTE Directive, EN50131-3 Security Grade 2 Enviromental class II
• Radio Section: Operating Frequency 868.6625MHz @ 20KHz bandwidth. I-ETS 300 220 CE tested to I-ETS 300 339 (draft standard)
• Antenna: Integral AE2 dual diversity antennae and receiver; BNC connector for connection to any remote antenna
• Transmitter learn: Auto recognition of type and auto configuration via radio or LED (16,000,000 permutations)
• Input power: 9-15VDC Quiescent current 55mA. All outputs active 200mA
• Supervision interval: Programmable 4 minutes, 29 minutes or no supervision
• Outputs 1 and 2: Relay contacts, NO/NC, 2A at 25VDC
• Status outputs: 5 x Relay contacts, NO/NC, 2A at 25VDC
• Dimensions: 183 x 129 x 32mm (H x W x D)
• Weight: 0.35kg
• Compatible: 794rEUR-00 indoor/outdoor high gain
• Antennae:797rEUR-00 indoor/outdoor 1/2 wave
