Pyronix (FPINVINCPLUS3BW) Invincibell Plus White Sounder, Grade 3

Pyronix (FPINVINCPLUS3BW) Invincibell Plus White Sounder, Grade 3

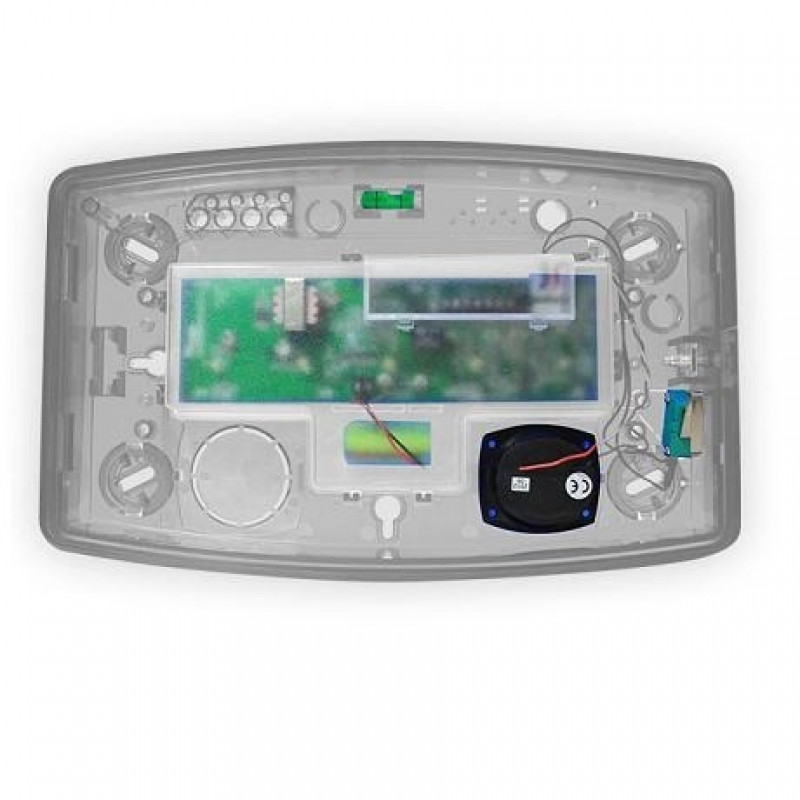

White sounder base with pcb module, battery, no cover.

The Invincibell PLUS features a fully back-lit cover to provide around the clock visual deterrent A number of engineer friendly features; the unique levelling mechanism and modular components now make simple sounder installation a reality for you.

3 Way tamper action
Activation from front, back, and power supply cut off ensures protection from sabotage attempts. In this situation, the siren will activate independently of the control panel.

Current consumption feature
An incorporated LDR (Light Dependant Resistor) will turn the Lightbox off automatically during daylight hours.

Sound Pressure Level 104dBA

Siren cut-off timer
The cut off timer is defaulted to 15 minutes to meet industry regulations.

Revolving guide holes
Unique levelling mechanism including in-built spirit level and revolving guide holes.

Supplied with battery
Complete with a backup battery so that even in the event of an intruder sabotage, the bell box will still operate and protect the property.

Fully backlit base
The base of the Deltabell Plus is backlit constantly, providing free advertising for your company

Visual alarm warning feature
In addition to the strobe, backlight will also strobe when the alarm is activated.

Remote engineer hold off
It is possible to disable the bell box tamper when a control panel is in the engineers menu.

Key Features:

• 3 Way tamper action
• Dual skin 3mm ABS housing - IP65 rated
• Supplied with rechargeable battery
• Various colour combinations available
• Piezo sounder technology
• Full backlit base
• Engineer hold off
• Active self-test for SAB back up battery
• Siren trigger input is continuously monitored for integrity
• Fault relay output
• Mounted Horizontally or Vertically

Technical Specifications:

Sounders technical characteristics

• Loudness : 104 dB(A)
• Sound and light indication on alarm : Yes
• Engineer hold off : Yes
• Number of Piezos : 1
• Flashing LED : Yes
• Comfort LED : Yes
• Back-lit : Yes
• Tamper protection : Yes
• Strobe duration and frequency : 10mS, 1Hz
• Sounder maximum duration : 15 mins
• SAC (self actuating bell) / SAB (self activating bell) option : Yes
• Self levelling : Yes

Environmental and operating features

• Certified operating temperature : -25°C to 60°C
• Nominal operating temperature : -30°C to 60°C
• Physical dimensions (H x W x D) : 314.5 x 198.8 x 53.3 mm

Electrical & battery

• Battery type : NiMH 7.2V, 250mAh
• Battery life : 2 - 5 years
• Operating voltage : 13.8V dc
• Alarm current : 300mA
• Quiescent current consumption : <73mA

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-4:2009 PD6662:2010
• Certification type : Self Certified
• Environmental class : IV
• Warranty : 2 years
• Security Grade : Grade 3
