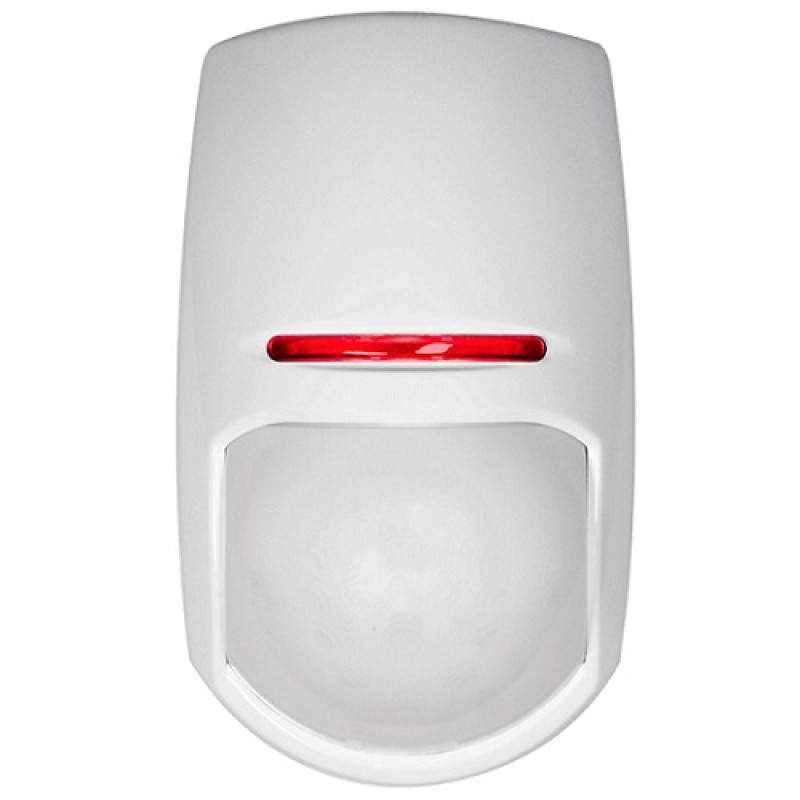

Pyronix (FPKX15EDHTC) Configured 15m Dual Sensor

Pyronix (FPKX15EDHTC) Configured 15m Dual Sensor

The KX15ED is the entry level detector in the KX range. With the ability to adjust the sensitivity settings and temperature compensation you will still get great performance.

With 15m Volumetric detection coverage it is deal for protection of rooms, offices etc.

Key Features:

• 15m volumetric detection coverage
• Dual element pyro-electric sensor
• Selectable EOL (End Of Line) resistors
• Patented Independent Floating Thresholds (IFT)
• Adjustable sensitivity settings
• Automatic temperature compensation
• Tamper proof brackets included
• Sealed optics
• ABS plastics

Adjustable sensitivity settings
Adjustable sensitivity settings for installations in a any environment. (High/Low).

Patented Independent Floating Thresholds (IFT)
This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Selectable EOL resistors
The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Tamper proof brackets
Tamper proof wall and ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

Automatic temperature compensation.
When the product is used in a hot environment this technology automatically adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32c.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Technical Specifications:

Detectors technical characteristics

• Set sensitivity: High or Low
• DEOL resistor on board: Yes
• Tamper protection: Front and rear
• Standard temperature compensation: Yes

Optical, lens and detection characteristics

• Maximum range: 15m
• Volumetric coverage: Yes
• Detection speed: 0.3 - 3.0 m/s
• Coverage angle: 85 degree
• Detection zones: 60
• Detection planes: 7
• Protection of area under the detector (creep zone): Yes
• White light filter: 6500 Lux
• Protection: Ultraviolet light filter
• Lens: 3 dimensional
• Optics: Sealed optics
• Detection method: Low noise dual element pyroelectric sensor

Mounting

• Wall mounted: Bracket included
• Ceiling mounted: Bracket included
• Optimum coverage height: 1.8 - 2.4m
• Certified mounting height: 2.4m

Environmental and operating features

• Storage temperature: -40C to +80C
• Certified operating temperature: -10C to +40C
• Nominal operating temperature: -30C to +60C
• Physical dimensions (H x W x D): 117 x 69 x 50mm
• Weight: 125g without bracket

Electrical & battery

• Operating voltage: 9-16V DC 13.8V DC typical
• Quiescent current consumption: 24mA @ 12V (Min), 30mA @ 12V (Max)
• Contact Resistance: <10 ohms
• Relay outputs: 50mA 60 VDC, 42 VAC (RMS)
• Tamper switch: 12V 50mA

Certifications and warranty

• Security Grade Grade: 2
• Environmental class: II
• EN Certificate: EN50131-2-2:2008, EN51031, PD6662:2017
• Certification type: Self-Certified
• Certificate number: N/A
• Electrical conformity: CE

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
