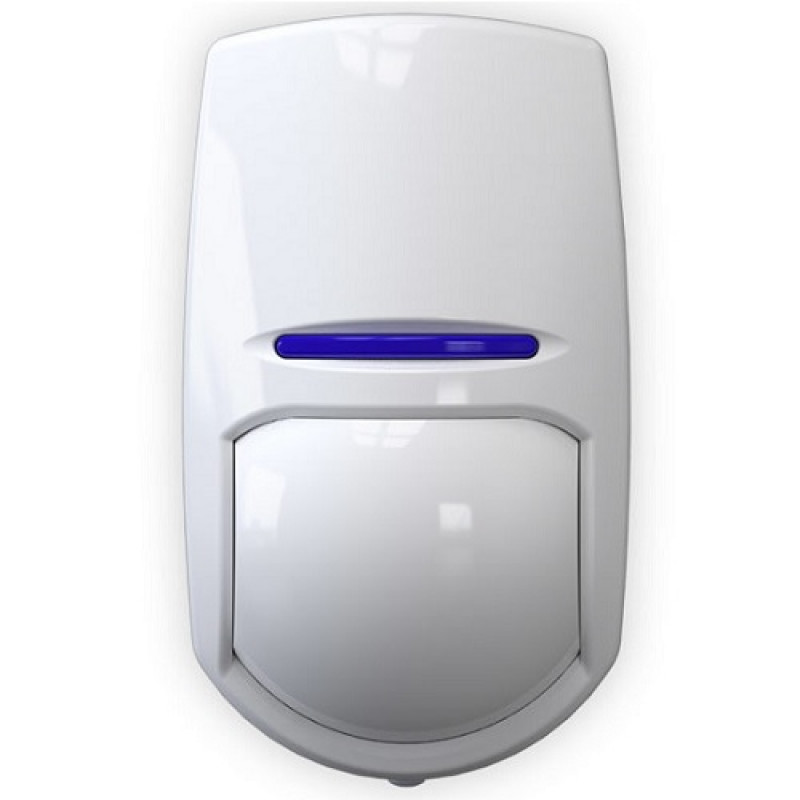

Pyronix (FPKX15DTAM3C) Configured Dual Technology 15m Anti-masking Detector

Pyronix (FPKX15DTAM3C) Configured Dual Technology 15m Anti-masking Detector

Key Features:

• Patented anti-masking technology
• Dual technology
• Grade 3 compliant
• Selectable EOL (End Of Line) resistors
• Blue Wave Technology
• Auto sensitivity feature
• Digital temperature compensation
• Tamper proof brackets included
• Sealed optics
• ABS plastics
• Dual element pyro-electric sensor

Grade 3 Security
The KX15DTAM is suitable for Grade 3 installations. With anti-mask and dual technology the KX15DTAM is the premium detector in the KX range.

Patented Anti-Masking
This patented and adjustable anti-masking technology ensures that any attempt to mask the detector is reported to the control panel and the system cannot be set until the blockage is removed, making the sensor robust to accidental and malicious attempts to overcome the security of the system.

Selectable EOL resistors
The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Blue Wave Technology (BWT)
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

Digital temperature compensation digitally adjusts the detectors sensitivity to ensure performance is maintained.

Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and better immunity.

Tamper-proof brackets
Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).

Auto Sensitivity feature
Depending on the environment condition, the detector will automatically adjust the sensitivity.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing

Technical Specifications:

Detectors technical characteristics

• Blue Wave technology: Yes
• Automatic sensitivity: Yes
• Set sensitivity: Auto or Pulse Count 1
• Digital temperature compensation: Yes
• DEOL resistor on board: Yes
• Tamper protection: Front and rear
• Separate LED indication: Microwave, PIR, Alarm
• 3 microwave frequencies to avoid interference: Yes

Optical, lens and detection characteristics

• Maximum range: 15m or 18m
• Volumetric coverage: Yes
• Dual technology: Yes
• Detection speed: 0.2 - 2.5m/s
• Coverage angle: 85 degree
• Detection zones: 74
• Detection planes: 7
• Adjustable antimasking (antispray): Yes
• Anticloaking technology: Yes
• Protection of area under the detector (creep zone): Yes
• White light filter: 6500 Lux
• Protection: Ultraviolet light filter
• Lens: 3 dimensional
• Optics: Sealed optics

Mounting

• Wall mounted: Bracket included
• Ceiling mounted: Bracket included
• Optimum coverage height: 1.8 - 2.4m
• Certified mounting height: 2.4m

Environmental and operating features

• Storage temperature: -40C to +80C
• Certified operating temperature: -10C to +40C
• Nominal operating temperature: -30C to +60C
• Physical dimensions (H x W x D): 117 x 69 x 50mm
• Weight: 125g without bracket

Electrical & battery

• Operating voltage: 9-16V DC 13.8V DC typical
• Quiescent current consumption: 24mA @ 12V (Min), 30mA @ 12V (Max)
• Contact Resistance: <10 ohms
• Relay outputs: 50mA 60 VDC, 42 VAC (RMS)
• Tamper switch: 12V 50mA

Certifications and warranty

• Security Grade Grade: 3
• Environmental class: II
• EN Certificate: EN50131-2-4:2008, EN50131-1, PD6662:2017
• Certification type: IMQ
• Certificate number: CA12.01176
• Electrical conformity: CE

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
