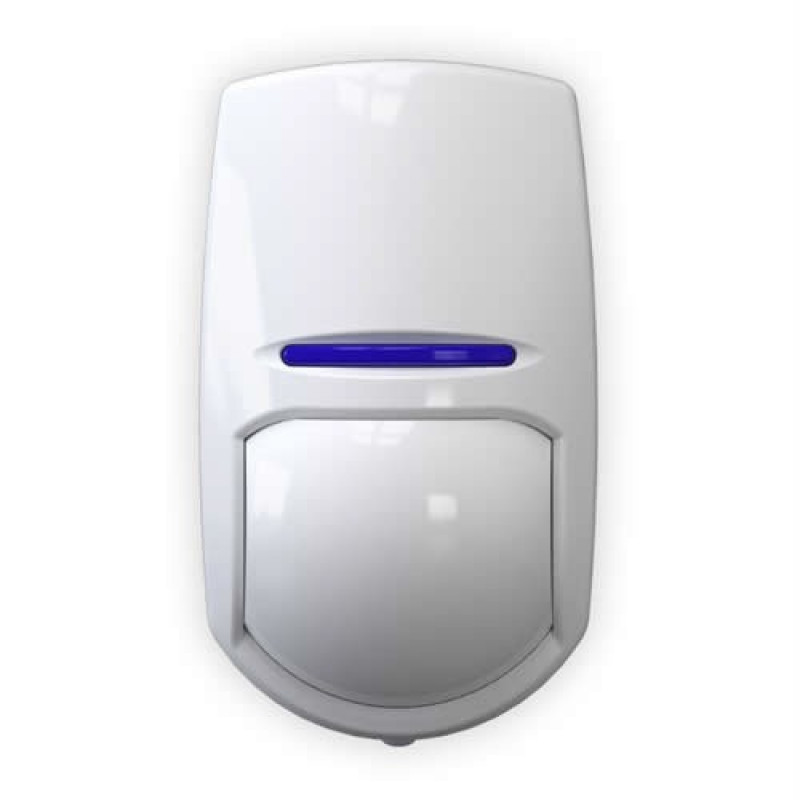

Pyronix (FPKX15DT3C) Configured Dual Technology 15m Detector

Pyronix (FPKX15DT3C) Configured Dual Technology 15m Detector

The KX15DT features Dual element pyro-electric sensor with X-band DRO based microwave both of which need to be triggered to set off the Alarm, this reduces the risk of false alarms.

Key Features:

• Dual technology detector using PIR and Microwave sensors
• Selectable EOL (End Of Line) resistors
• AND/OR technology
• Patented Independent Floating Thresholds (IFT)
• Blue Wave Technology
• Auto sensitivity feature and digital temperature compensation
• Triple LED indication
• Different frequency options avoiding microwave crosstalk
• Sealed optics
• Tamper proof brackets included
• Complies with EN50131-1

Blue Wave Technology (BWT)
With Blue Wave Technology (BWT) and digital temperature compensation the detector will adjust its sensitivity, further enhancing the detectors immunity to false alarms and environmental disturbance.

15m Volumetric detector
15m Volumetric detection coverage. Ideal for protection of rooms and offices in commercial environments.

Selectable EOL resistors
The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Active self test
If there is no activation after a 5 hour period it will actually self test both the PIR and microwave.

AND/OR technology
‘AND’ mode operates as a standard dual technology detector, where both technologies need to active to cause the alarm. ‘OR’ mode will switch the sensors activation of the alarm input to be either the PIR ‘OR’ Microwave. This can be useful in environments where there is a risk of PIR detection being blocked.

Blue Wave Technology (BWT)
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components:

The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.
Digital temperature compensation digitally adjusts the detectors sensitivity to ensure performance is maintained
Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Auto Sensitivity Feature
Depending on the environment condition, the detector will automatically adjust the sensitivity.

Microwave Frequencies Bands
3 different frequency bands to avoid interference between detectors are installed in the same room.

Triple LED indication
Microwave – orange, PIR – green, alarm – blue

Technical Specifications:

Detectors technical characteristics

• Blue Wave technology: Yes
• Automatic sensitivity: Yes
• Set sensitivity: Auto or high
• Digital temperature compensation: Yes
• DEOL resistor on board: Yes
• Tamper protection: Front and rear
• 3 microwave frequencies to avoid interference: Yes

Optical, lens and detection characteristics

• Maximum range: 15m
• Volumetric coverage: Yes
• Dual technology: Yes
• Detection speed: 0.3 - 3.0 m/s
• Coverage angle: 85 degree
• Detection zones: 74
• Detection planes: 7
• Anticloaking technology: Yes
• Protection of area under the detector (creep zone): Yes
• White light filter: 6500 Lux
• Protection: Ultraviolet light filter
• Lens: 3 dimensional
• Optics: Sealed optics
• Detection method: Low noise dual element pyroelectric sensor and Microwave Doppler Sensor

Mounting

• Wall mounted: Bracket included
• Ceiling mounted: Bracket included
• Optimum coverage height: 1.8 - 2.4m
• Certified mounting height: 2.4m

Environmental and operating features

• Storage temperature: -40C to +80C
• Certified operating temperature: -10C to +40C
• Nominal operating temperature: -30C to +60C
• Physical dimensions (H x W x D): 117 x 69 x 50mm
• Weight: 125g without bracket

Electrical & battery

• Operating voltage: 9-16V DC 13.8V DC typical
• Quiescent current consumption: 24mA @ 12V (Min), 30mA @ 12V (Max)
• Contact Resistance: <10 ohms
• Relay outputs: 50mA 60 VDC, 42 VAC (RMS)
• Tamper switch: 12V 50mA

Certifications and warranty

• Security Grade Grade: 2
• Environmental class: II
• EN Certificate: EN50131-2-4:2008, EN50131-1, PD6662:2017
• Certification type: IMQ
• Certificate number: CA12.01175
• Electrical conformity: CE
