TDSI, 5002-0355, EXprox VR (Vandal Resistant) Mullion Reader
- Brand:TDSi
- Product Code:5002-0355
- Availability:Please Call or Email to Checkout

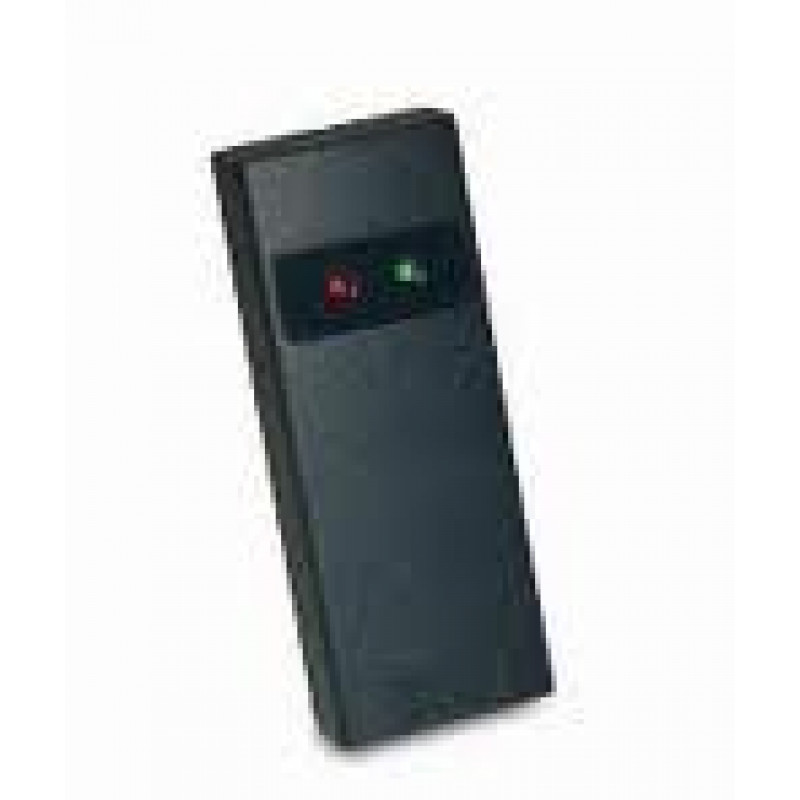

TDSI, EXprox VR Mullion Reader (5002-0355)
Suitable for locations that may be prone to vandalism, these robust, high quality access control card readers provide reliable performance through contactless technology for a wide range of applications. With a read range up to 8cm, these fully featured readers are available in a number of options for maximum design flexibility.
A stylish and fully featured proximity reader from TDSi. EXprox offers a high quality mullion mounted reader available in robust ABS plastic or vandal resistant stainless steel housings with excellent read range.
Key Features:
- Stainless steel housings for areas that may be prone to vandalism
- Fully encapsulated unit is suitable for internal or external installation
- Audible and visual indication of cards read and access status
Key Benefits:
- Reader can be tailored to suit different aesthetic requirements
- May be mounted internally or externally
- Allows connection to all standard access control panels
- User confidence is assured through both audible and visual indicators
Specifications:
- Dimensions: 40 x 101 x 18 mm
- Weight: 280 g
- Operating environment: -20°C to +55°C,
- 0 to 95 %RH (non-condensing)
- Power supply: 5 to 14 VDC, 100 mA max
- Operating frequency: 125 kHz
- Card technology: EM4100, EM4102, EM4200 and compatible
- Sounder: Integral with external control
- LEDs: 2 red and green both with independent external control
- Read range: <150 mm with ISO card, <70 mm with tag (eXprox) <70 mm with ISO card, <30 mm with tag (eXprox VR)
- Output formats: Mag stripe, 26-bit Wiegand.
For more details, please refer with our attached datasheet.
