AES (PRIME7-AB-EU) 4G (EU) Architectural GSM Intercom
- Brand:AES
- Product Code:PRIME7-AB-EU
- Availability:Please Call or Email Us to Check Availability

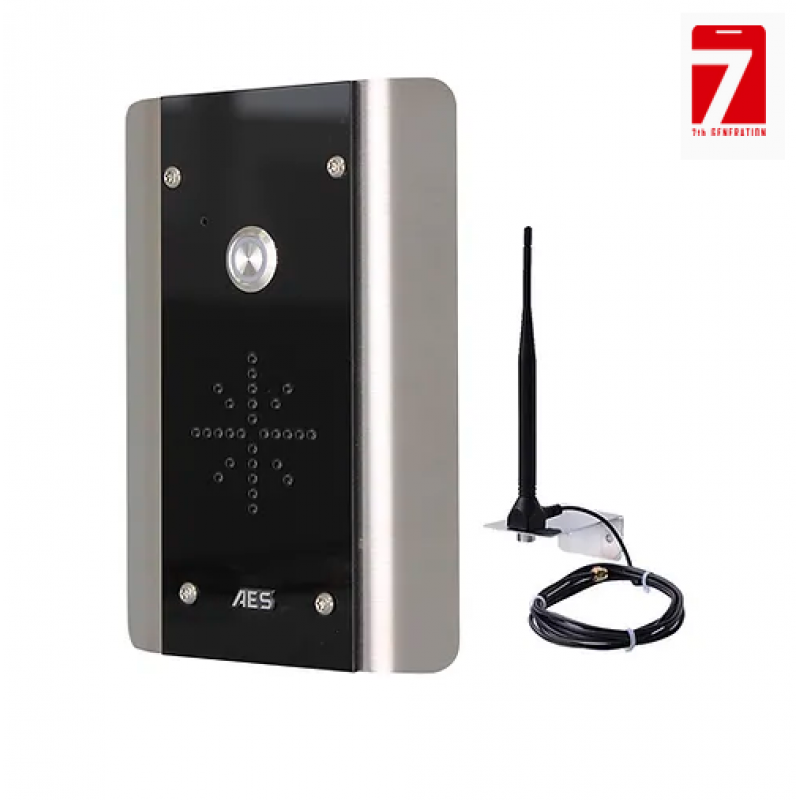

AES (PRIME7-AB-EU) 4G (EU) Architectural GSM Intercom
Stylish curved architectural model. Constructed from BS316 marine grade stainless steel and finished with gloss black acrylic trim. Blue backlighting.
OUR 7TH GENERATION OF PRIME GSM INTERCOM
Updated technical features.
-
Never miss a caller! Calls your home phone or mobiles on roll-over when visitor presses call button.
-
Increased keypad codes & prox card capabilities. 250 permanent codes, 250 time restricted, 50 temporary codes.
-
Set automatic open/close times from app.
-
2 relays. Set automatic gate open & closed times.
-
Store up to 4 notification phone numbers to receive an SMS (customizable) when relay is triggered etc
Technical Details:
- Dial Out Numbers: 4
- Relays: 2
- Permanent Codes/cards: 250
- Relay Type: N/C and N/O
- Time Restricted Codes/cards: 250
- Relay Load: 2 amps, 24v ac max
- Temporary Codes/cards: 50
- Power Consumption: 300mA on dial out, 2amp peak demand
- Automatic Trigger Events per Week: 50
- Modem Models: 4G Europe, 4G USA, 4G AUS/NZ
- Caller ID Numbers: 250
- Power Supply: 24v dc (24v dc 2A adaptor included)
- Time Restricted Caller ID Numbers: 250
OPTIONAL:
| PRIME7-AB-EU | 4G (EU) Architectural GSM Intercom |
| PRIME7-ABK-EU | 4G (EU) Architectural GSM Intercom with keypad |
| PRIME7-AS-EU | 4G (EU) Architectural all stainless GSM Intercom |
| PRIME7-ASK-EU | 4G (EU) Architectural all stainless GSM Intercom with keypad |
| PRIME7-IB-EU | 4G (EU) Imperial Style GSM Intercom |
| PRIME7-IBK-EU | 4G (EU) Imperial Style GSM Intercom with keypad |
| PRIME7-PB-EU | 4G (EU) Imperial Pedestal Style GSM Intercom |
| PRIME7-PBK-EU | 4G (EU) Imperial Pedestal Style GSM Intercom with keypad |
| PRIME7-FB-EU | 4G (EU) Style GSM Intercom (flush mounted) |
| PRIME7-FBK-EU | 4G (EU) Style GSM Intercom with keypad (flush mounted) |
| PRIME7-FS-EU | 4G (EU) Flush all stainless GSM Intercom |
| PRIME7-FSK-EU | 4G (EU) Flush all stainless GSM Intercom with keypad |
For more details on this product range, including part numbers, please click on the links below to download the relevant document for this product.
