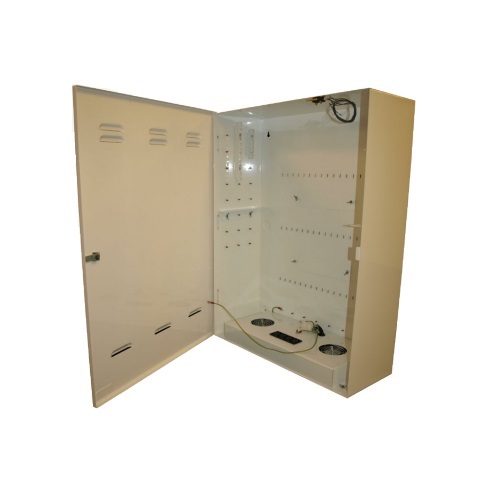

A wall mountable slim rack cabinet, developed for installers specialising in large buildings from commercial skyscrapers to large domestic dwellings that require long cable runs. This unit allows you to create a secure mini comms room in a slim wall mounted cabinet or simply as a CAT5 'Junction Box'. The unit allows for many configurations of 19” rack mounting equipment.

The DA816 is supplied with two pairs of 4U and one pair of 2U brackets, which can be horizontally and/or vertically mounted in various positions. This unit allows shallow devices such as patch panels to be horizontally mounted with deeper switching units mounted vertically.

• 4U (max. 170mm†deep) mounted horizontally with 4U of equipment 350mm† deep, mounted vertically.
• 6U of equipment (max. 170mm† deep) mounted horizontally with 4U of equipment 250mm† deep, mounted vertically.

In addition the unit is fitted with an optional 4-way IEC connector power distribution unit with twin cooling fans. Other features include: lid tamper microswitch, removable hinged lid with key-lock, vents, wall mounting fixing positions, tool free removable rear cable entries, seven spare earthing points.

Key Features:

• Versatile 4U and 2U brackets
• Multiple bracket mounting positions
• Horizontal and vertical equipment mounting
• Removable hinged and lockable lid
• Tool free removable rear cable entries
• Seven spare earthing points
• Optional 4-way IEC connector PDU
• Optional twin cooling fans
• Lid tamper micro switch

For more details, please refer with our attached datasheet.
