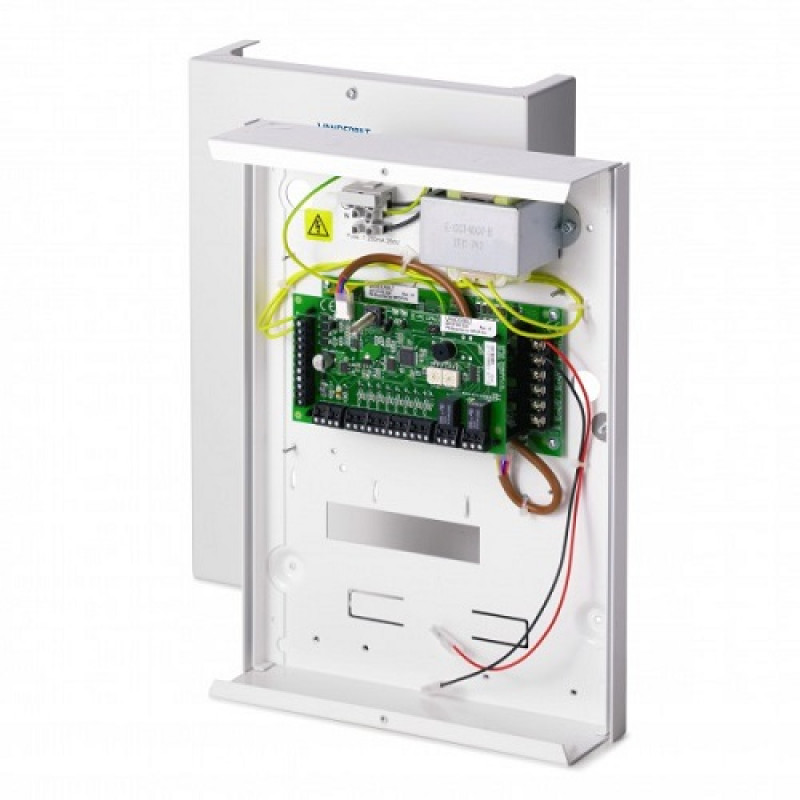

SPCP332.300, Smart PSU (7AH) with I/O-Expander

The SPCP332.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.

• Easy configuration
• Cause and effect intergration
• Configurable Inputs type (22+ types)
• Configurable Input EOL (24+ types)
• Individual name per input
• Individual log per input
• Configurable Outputs
• Individual test function per output
• Log option per output
• Each output can be restricted by calendars
• 3 Selectable modes of operation per output

                 1. Continious
                 2. Pulse
                 3. Momentary
