SPCN910.000, Communication Interface Module

SPCN910.000, Communication Interface Module

  • 0 reviews
  • Write a review
    • Brand:Vanderbilt
    • Product Code:SPCN910.000
    • Availability:Please Call or Email Us to Check Availability

    Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

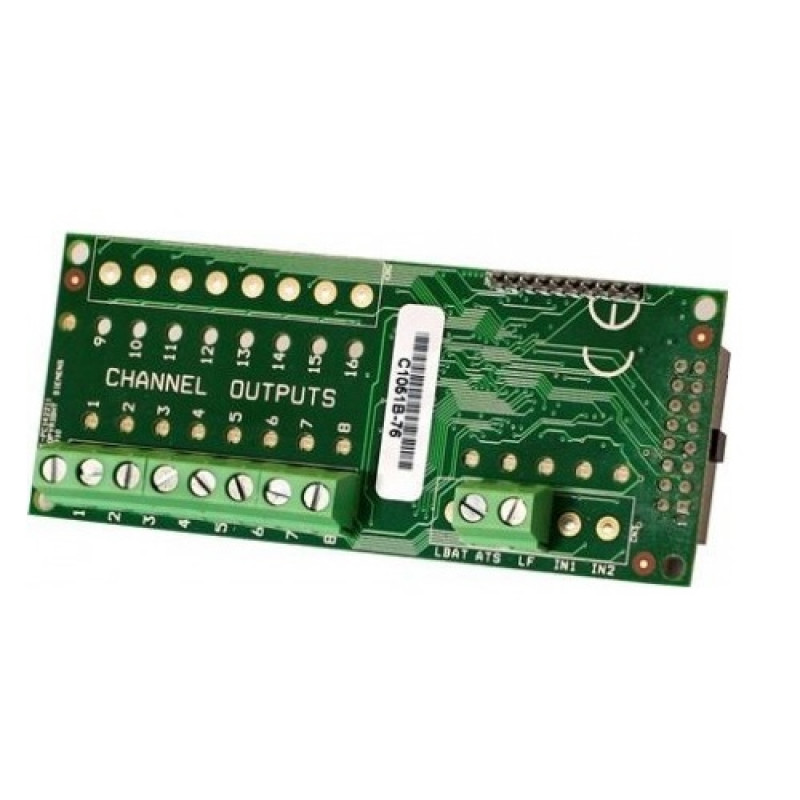

    SPCN910.000, Communication Interface Module

    The SPCN910.000 is an interface module which will enable the SPC control panel to support secure alarm signaling services offered within the UK. A range of 3rd party single & dual path communication devices, offered by UK market leaders in the provision of these services, can be easily connected to the module & placed within SPC G2 & G3 cabinets.

    Specifications:

    Operating temperature:

    -10 ~ +50 °C

    Inputs:

    0 - 5 volts (15 volts max.) with internal pull-up resistor to 5 volts (active high)

    Outputs:

    0 - 5 volts CMOS (active high)

    Interfaces:

    1 x 16-pin socket to controller interface, 1 x channel output block with 8 terminals, 1 x signal terminal block (with 1 input and 1 output).

    LED Indicators:

    11 (green)

    Operating current:

    Max. 44 mA at 12 V DC (8 channel output LEDs on)

    Quiescent current:

    Max. 40 mA at 12 VDC

    Mounting:

    Plug on module to SPC controller

    Dimensions (W x H x D):

    90 x 38 x 20 mm

    Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
