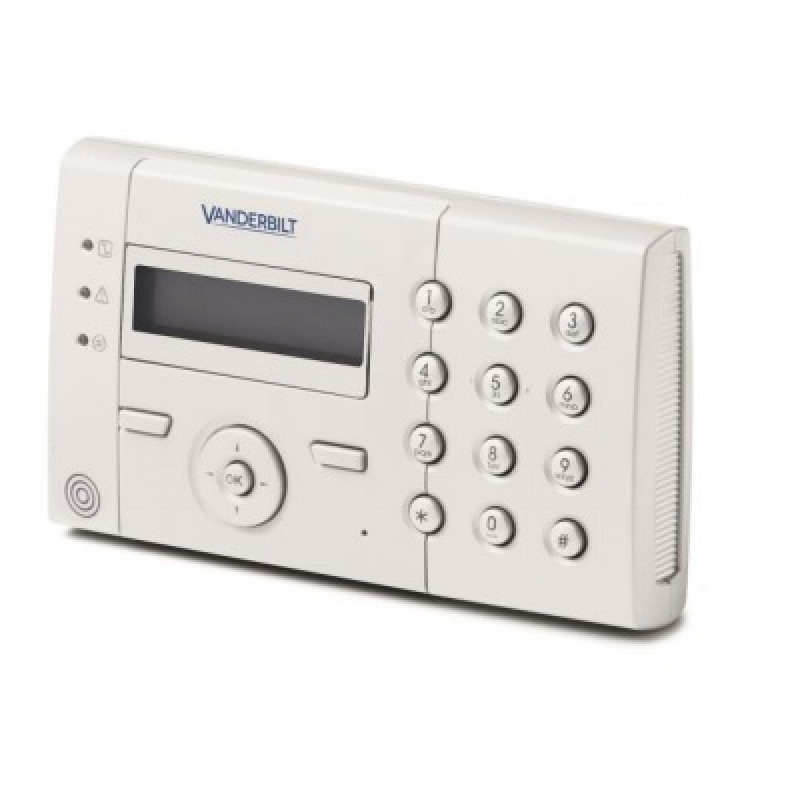

SPCK420.100-N, LCD Keypad with 2 x 16 Characters - Neutral

The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The keypad comes as neutral version without printed logo.



LCD Display:	2 x 16 characters
LED Indicators:	3 status LEDs
Interfaces:	X-BUS (in, out)
Operating voltage:	9.5 ~ 14 VDC
Operating current:	Max. 90 mA at 12 VDC (backlight, LEDs, sounder operated)
Quiescent current:	Max. 45 mA at 12 VDC
Mounting:	Flat surface, wall-mounted
Operating temperature:	5° ~ +40 °C
Colour:	RAL 9003 (signal white)
Dimensions (W x H x D):	148 x 85 x 33 mm
Tamper protection:	Front / back spring tamper
Housing:	Plastic housing (ABS), no logo
