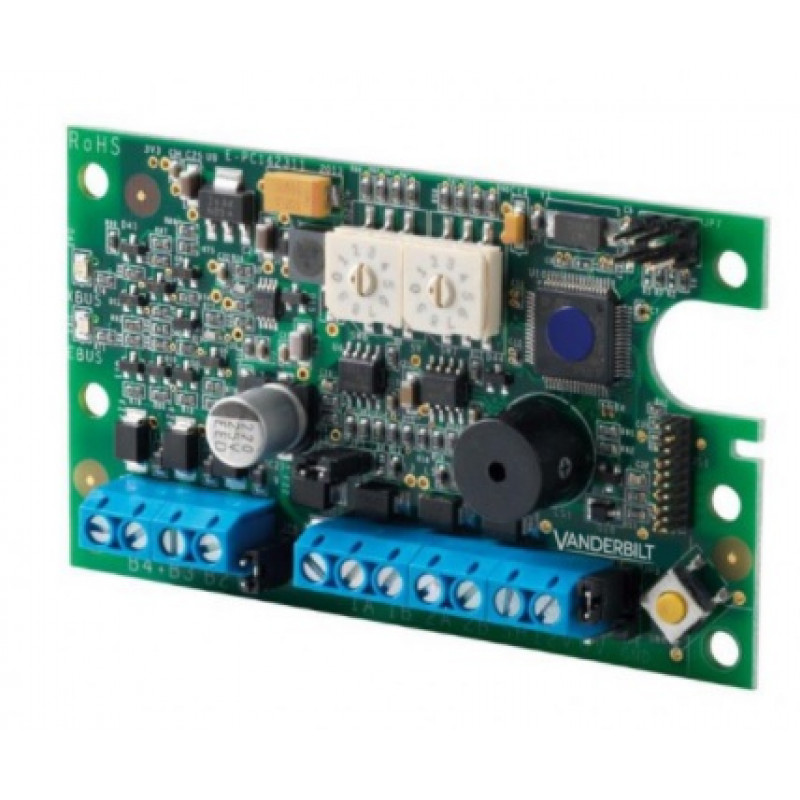

SPCG310.000, E-Bus Gateway

SPCG310.000, E-Bus Gateway

The SPCG310.000 E-BUS Gateway provides an interface between SPC X-BUS and Sintony E-BUS. The gateway enables the SPC controller to recognize Sintony peripheral devices by simulating the E-BUS devices so they appear to the SPC controller as X-BUS devices. The SPC controller supports up to five SPC E-BUS Gateways on its X-BUS. The maximum number of Sintony input zones supported by SPC is 252 and the maximum number of Sintony outputs is 174. The SPCG310.000 is supplied without housing. There are a number of housing options available. The SPC E-BUS Gateway can be mounted within the SPC controller housing, Sintony power supply units or in Sintony transponder housing.

Key Features:

• Seamleess interface: Gateway between SPC X-BUS and Sintony E-BUS.
• BUS detector solution: Supports up 56 MAGIC E-BUS detectors per SPC control panel.
• Preserve existing wiring and devices: Supported Sintony peripheral devices can remain in situ on the E-BUS without a need for replacing or re-wiring.
• Simple setup and configuration: Initial system setup is simple and easy via the SPC Web Browser and system configuration is effortless using standard SPC installer tools.
• Improved system response times: Sintony device response times are improved due to the installation of SPC control panel and SPCG310 mapping of Sintony devices to SPC devices.
• Flexible installation: Small, compact and easy to install.

Specifications:

• Dimensions (L x W x H): 52 x 92 x 13mm
• Max. number of hardwired zones: 252 (Sintony Inputs)
• Compatibility: - SAT12/SMT12 - SMT22 - SAT24/SMT24 - SMT44 - SAK41 - SAK51 - SAK53 - SAP08 - SAP14 - SAP20 - SAP25
• Relative humidity: Max. 90% (non-condensing)
• Operating temperature: -10 to +50 °C
• Mounting: - SPC controller housing - Sintony transponder housing - Sintony PSU housing
• Quiescent current: 40 mA
• Operating current: 40 mA
• Operating voltage: 9.5 - 14 V DC
• Tamper contact: Tamper switch
• Interfaces: X-BUS (In / Out) E-Bus
• Tamper switch: Yes.

For more details, please refer with our attached datasheet.
