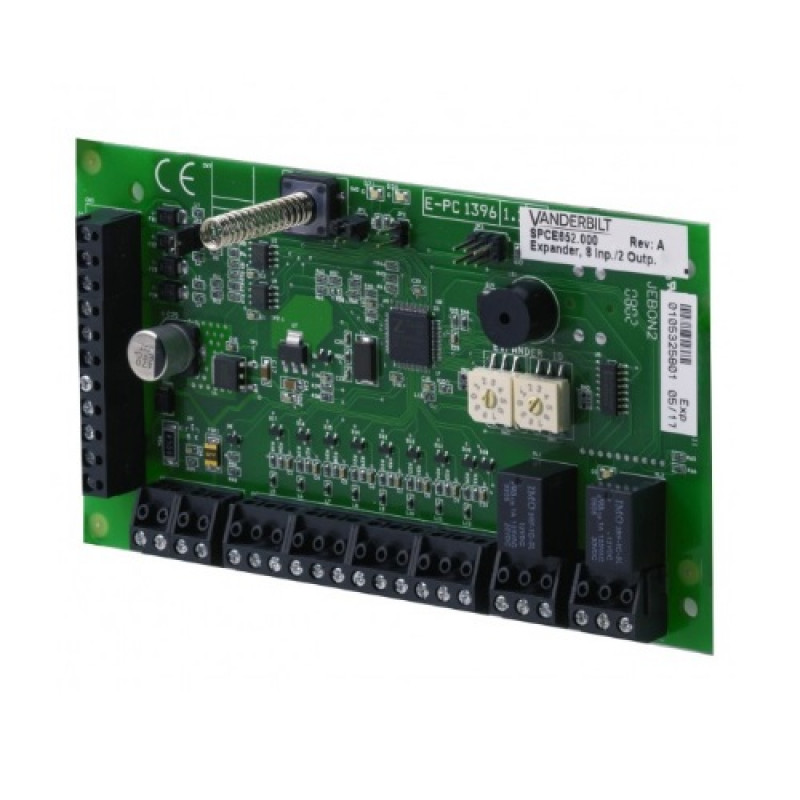

    SPCE652.000, Expander Board 8 In /2 Out

    The SPCE652.000 pcb only expander extends the SPC system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements.

    The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

    Technical Specification:

    Operating temperature: -10 ~ +50 °C
    Operating voltage: 9.5 ~ 14 VDC
    Number of on-board zones: 8
    EOL resistor: Dual 4k7 (default), other resistor combinations configurable
    Interfaces: X-BUS (in, out, branch)
    Operating current: Max. 80 mA at 12 VDC (all relays activated)
    Quiescent current: Max. 40 mA at 12 VDC
    Tamper contact: Front spring tamper, back tamper - provided in kit bag
    Mounting: In SPC G2 and G3 cabinets or SPC expander housings
    Dimensions (W x H x D): 150 x 82 x 20 mm (PCB)
