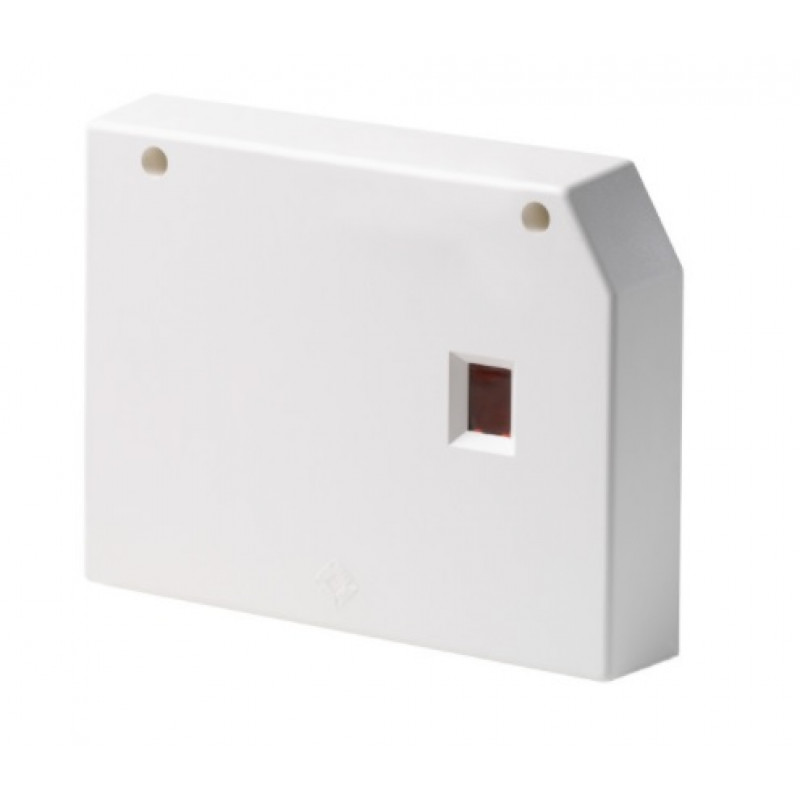

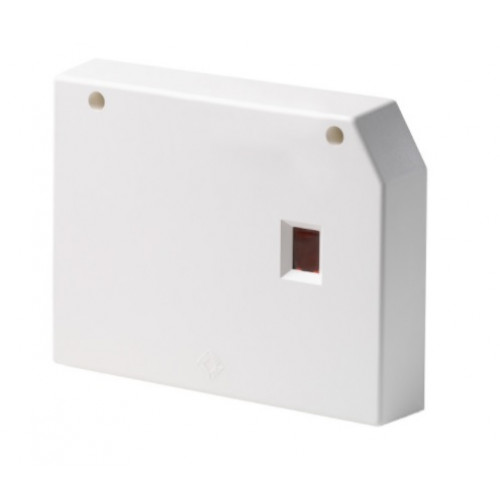

SPCA210.100, 2-Door Expander

SPCA210.100, 2-Door Expander

The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

Key Features:

• Intrusion system control
• Configurable access rights
• Standalone
• Easy configuration
• Door monitoring
• Remote access
• Card per user
• Door monitoring
• Cause and effect intergration
• Interlock
• Anti passback
• Custodian
• Emergency unlock
• Card and pin configuration options
• Configurable zone type
• Audio and Video Verification option

Specifications:

• Operating temperature: -10 ~ +50 °C
• Operating current: Max. 80 mA at 12 VDC (all relays activated)
• Tamper contact: Front spring tamper
• Interfaces: X-BUS (in, out, branch), Reader 1, Reader 2
• LED Indicators: 4 outputs (1 void and 1 valid per reader)
• Number of on-board relays: 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
• EOL resistor: Dual 4k7 (default), other resistor combinations configurable
• Number of on-board zones: 4, for door release switch (DRS) and door position switch (DPS), or freely programmable
• Housing: Plastic housing (ABS)
• Colour: RAL 9003 (signal white)
• Mounting: Flat surface, wall-mounted
• Quiescent current: Max. 45 mA at 12 VDC
• Operating voltage: 9.5 ~ 14 VDC
• Tamper switch: Ja
• Approval: CH: FFIS bis Kat. 1.

For more details, please refer with our attached datasheet.
