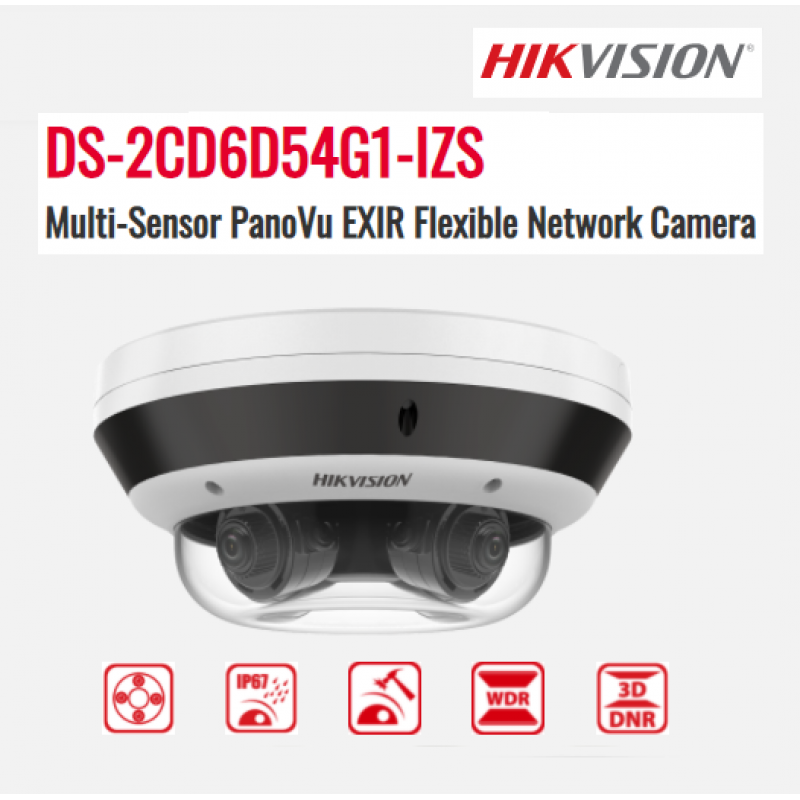

DS-2CD6D54G1-IZS, 5MP Quad-Directional Varifocal PanoVu Camera, 2.8-8mm lens

DS-2CD6D54G1-IZS, 5MP PanoVu, 2.8-8mm lens, IP67, Vandal Resistant, H.265+ DC12V & PoE, WDR, 30m IR, Audio/Alarm IO

4-Directional Multisensor Network Camera

• 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
• Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)
• 3D DNR technology delivers clean and sharp images
• -S: audio and alarm interface available

Specification

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 2560 × 1920
• Min. Illumination: Color: 0.0125 Lux @(F1.9, AGC ON), B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°

Lens

• Lens Type: Varifocal lens, 2.8 to 8 mm
• Focal Length & FOV: 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
• Lens Mount: Ø14
• Focus: Manual, semi-auto
• Aperture: F1.9

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
