Takex (PIR-T15AM) High Mount External 15m PIR With Anti-Masking
- Brand:Takex
- Product Code:PIR-T15AM
- Availability:Please Call or Email Us to Check Availability
Takex (PIR-T15AM) High Mount External 15m PIR With Anti-Masking
| PIR-T15WE | ||||
| PIR-T15AM (with Anti-Masking) | ||||
| Low Position | High Position | Pet Mode | High Density | |
| Mount Height | 2m - 2.7m | 2.7m - 3.5m | 2.5m - 3m | 2m - 6m |
| Coverage | 15m x 80~81° | 15m x 80~83° | 15m x 80° | 15m x 80~85° |
| Standard Operation | Specialised Operation | |||
The PIR-T15 is a high performance triple mirror passive infrared detector designed for both indoor and outdoor intruder applications.
The unique combination of triple mirrors and three twin pyros enable 4 selectable operation modes including Low Position, High Position, Pet Mode, and High Density; for distances up to 15m from a mounting height of 2 to 6m, throughout a full 80 degrees.
Available with (PIR-T15AM) and without (PIR-T15WE) active Anti-Masking technology.
Features:
- 4 Operation modes; Low Position, High Position, Pet Mode, and High Density
- Up to 15m x 80 degree coverage
- 2m to 6m Installation height (depending on operation mode)
- High performance triple mirror optical system
- Precise detection area adjustment function
- Anti-masking function (PIR-T15AM)
- Lightning surge protection
- Suitable for indoor and outdoor use (IP55)

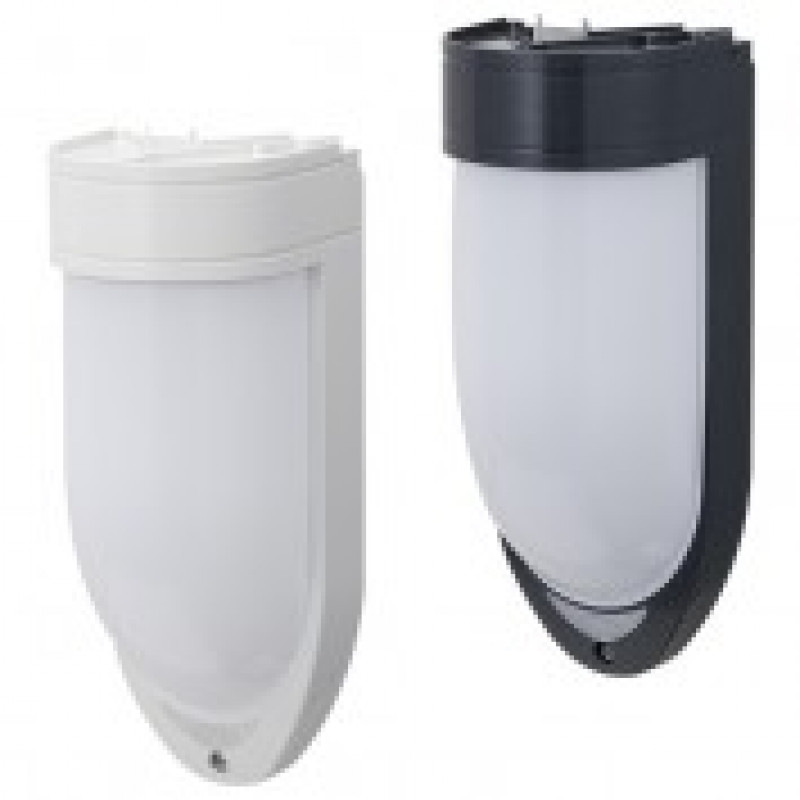

- Available in white (W) and grey/black (G)
Specifications:
| Model | PIR-T15WE | PIR-T15AM |
| Detection system | Passive Infrared | |
| Detection area | Wide angle (80°) detection Detection distance: 49' (15m), 108 rays (54 pairs) |
|
| Power supply | 9 to 28VDC (non polarity) | |
| Current consumption | Max. 40mA | |
| Alarm output | Contact method: Dry semi-conductor contact, N.C./N.O. selectable Contact operation: One-shot operation when detecting intrusion Contact rating: 24V (AC/DC) 0.25A (resistive load) |
|
| External output | Contact method: Dry semi-conductor contact, N.O. Contact operation: One-shot operation/Off delay operation selectable when detecting intrusion Contact rating: 24V (AC/DC) 0.25A (resistive load) |
|
| Tamper output | Contact method: Dry mechanical contact, N.C. Contact operation: Continuous output Contact rating: 24V (AC/DC) 0.1A (resistive load) |
|
| Anti-masking output | N/A | Contact method: Dry semi-conductor contact, N.C. Contact operation: continuously output when an object is placed in front of the lens (until normal recovery) Contact rating: 24V (AC/DC) 0.1A (resistive load) |
| Alarm LED | Red LED: Blinks during warm up Lights at alarm |
|
| Memory LED | Red LED: Blinks for 3 minutes during memory display | |
| Functions | Sensitivity selection, Operation mode selection, Alarm memory LED, Self diagnosis, Low voltage monitoring, Temperature compensation, Tamper, LED area checker, Environmental adjustment ,Creep zone detection, Walk test mode, Near area cancellation, Long-term diagnosis | |
| Mounting positions | • Low position mode: 6.6’ to 9’(2.0 to 2.7m) • High position mode : 9’ to 11.5’(2.7 to 3.5m) • Pet mode : 8.3’ to 10’(2.5 to 3.0m) • High density mode : 6.6’ to 20’(2.0 to 6.0m) |
|
| Angle adjustment | Horizontal direction: 90° (by 5°pitch) | |
| Ambient temperature | -25°C to +55°C (no condensation and freezing) | |
| Installation place | Indoor/outdoor wall surface | |
| IP rating | IP55 | |
| Connections | Terminals (M2.6 self up terminal) | |
| Weight | Approx. 600g | |
| Appearance | Body: AES resin, Window: PE resin | |
For more details, pelase refer with our attached datasheet.
