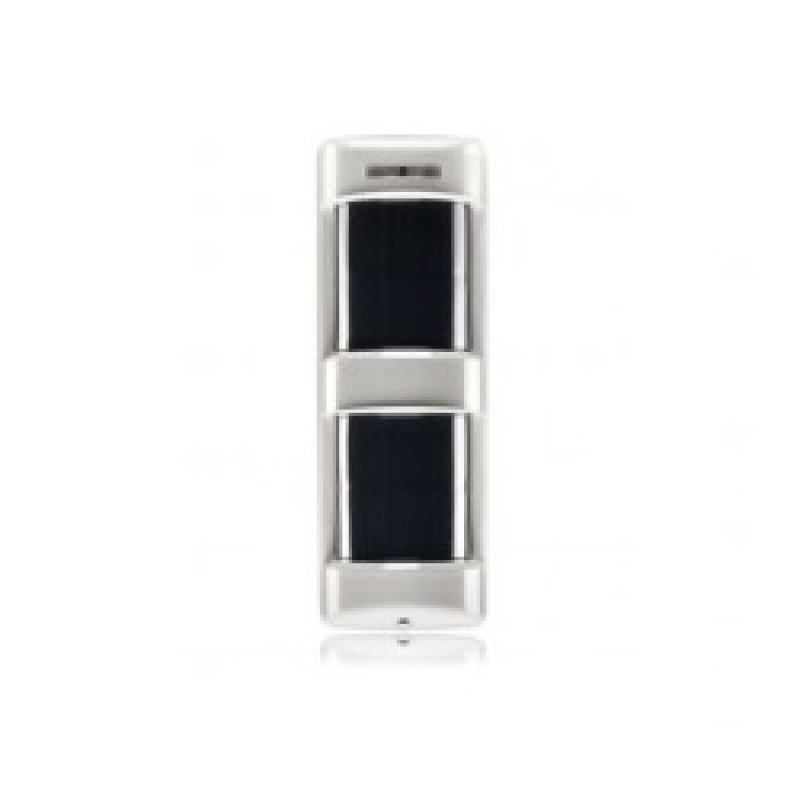

DUAL ZONE EXTERNAL PET-TOLERANT PIRs 12/24VDC (For Security, Lighting Control, CCTV Alarm Positioning .) Pet Tolerant PIR, External, Single Head, Wide Angle 90° x 12m, Day/Night Sensor. 12/24VDC MS-12TE
Description
Dual-Zone system reduces false alarms for reliable outdoor detection.
Features
•Dual-Zone sensor head can resist detection of small animals
•Advanced Variable Multi-area Detection System
•Selectable NO/NC relay output with Timer Function
•Day/Night Sensing
•Adjustable Pulse Count & Sensitivity
•0.8-1.2m Mounting Height
Specifications
| MS-12TE | |
| Detection system | Passive Infrared |
| Coverage | When horizontal detection Angle : 90° Detection distance : 40ft (12m) Horizontal zone : 7 zones Downward zone : 7 zones |
| Coverage adjustment |
Horizontal : +/-90° Detection distance : 10' to 40' (3 to 12m) (By adjusting vertical angle of downward zone) |
| Supply voltage | 12 to 30V DC (non-polarity) |
| Current consumption | 35mA MAX. |
| Alarm output | Dry contact relay output N.C./N.O. selectable Contact capacity : 30V (AC・DC), 0.5A MAX. (Resistive load) Contact operation : Detection time + off delay (2sec. -5min. approx.) |
| Detection settings | Daylight : Night (10 lux) - Day and Night |
| Tamper output | Dry contact relay output N/C Contact capacity : 30V (AC/DC), 0.5A MAX. (Resistive load) |
| Operation LED | Red LED Blinking at warming up (LED disabled) Lighting at alarm (LED disabled) |
| Pulse count settings | once / three times (with a switch) |
| Sensitivity adjustment | Approx. 30% (L) - Approx. 170% (H) (By potentiometer) |
| Connection | Terminals |
| Ambient temperature | -4F to +122F (-20C to +50C） |
| Mounting position | Indoor / Outdoor |
| Weight | 13.7oz (390g) |
| Appearance | Body : AES resin Lens : PE resin |
| Accessories | Tapping screw : 2 Area masking sheet : 1 |
