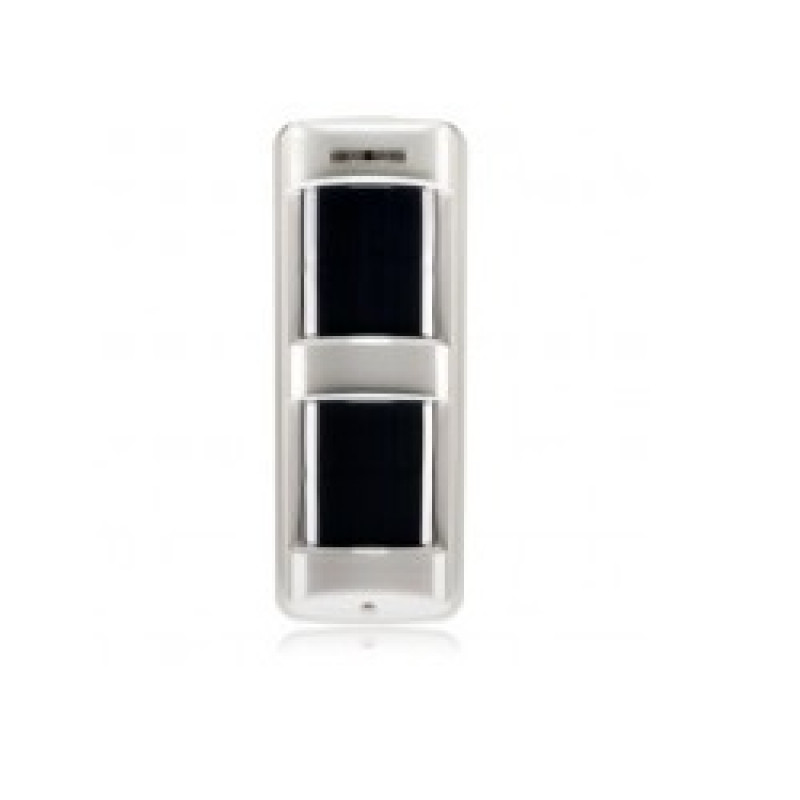

DUAL ZONE BATTERY-OPERATED EXTERNAL PET-TOLERANT PIRs (For Security, Lighting Control, CCTV Alarm Positioning .) Battery-Operated (PP3 9V) Pet Tolerant PIR, Ext, Single Head, Wide Angle 90° x 12m. TX-114TR
Description
With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, the new TX-114TR detector is compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas. The TX-114TR is ideal for triggering CCTV, lighting or warning systems in commercial, domestic and industrial applications.
Features
•Dual-Zone sensor head can resist detection of small animals
•Ultra-Low Current Consumption
•Powered by 3V to 9V Alkaline or Lithium Battery
•Can be used with numerous Wireless Transmitter Models (Not Supplied)
•Adjustable Pulse Count & Sensitivity
•Front, Mid and Back Tampers
•0.8-1.2m Mounting Height
Specifications
| TX-114TR | |
| Detection system | Passive infrared |
| Coverage | When horizontal detection Angle: 90° Detection distance: 40ft (12m) Horizontal zone: 7 zones Downward zone: 7 zones |
| Coverage adjustment |
Horizontal: 90 degrees Detection distance: 10ft to 40ft (3m to 12m) (Adjustable by changing the vertical angle of downward curtain) |
| Supply voltage | 3V to 9VDC Alkaline or Lithium Battery |
| Operation voltage | 2.3V to 10VDC |
| Current consumption | 25μA 5mA/3V (Test mode) |
| Operation | Solid State Switch N.C./N.O. selectable 10VDC · 0.01A Max •Alarm output One shot output when detecting human beings (approx. 2sec) •Tamper output Real time output · when the cover is detatched from the unit · when the unit is detatched from the installed wall or pole. •Trouble output Real time output when the unit suffers functional trouble. (from terminal of Alarm) |
| Operation LED | Red LED •Blinking for approx.1min at warming-up •Lighting for 1sec at detection during walk-test (LED lights only in a test-mode) •Blinking when trouble alarm is issued (Lights once every 5 sec) |
| Sensitivity adjustment | Approx. 30% to 170% (by rotary switch) |
| Pulse count | Once/Three times selectable (by dip switch) |
| Alarm prohibition time | 10sec/120sec/300sec/900sec selectable (by dip switches) |
| Ambient temperature | -4°F to +122°F (-20°C to +50°C) |
| Mounting position | Indoor/Outdoor [Wall or Pole] |
| Weight | 18oz (560g) |
| Appearance | Body: AES resin Lens: PE resin |
| Accessories | Pole attachment: 2sets Mounting screw: 2pcs Adhesive sheet: 1 pc Area masking sheet Battery holder: 1 pc B.T.Killer:1 pc |
