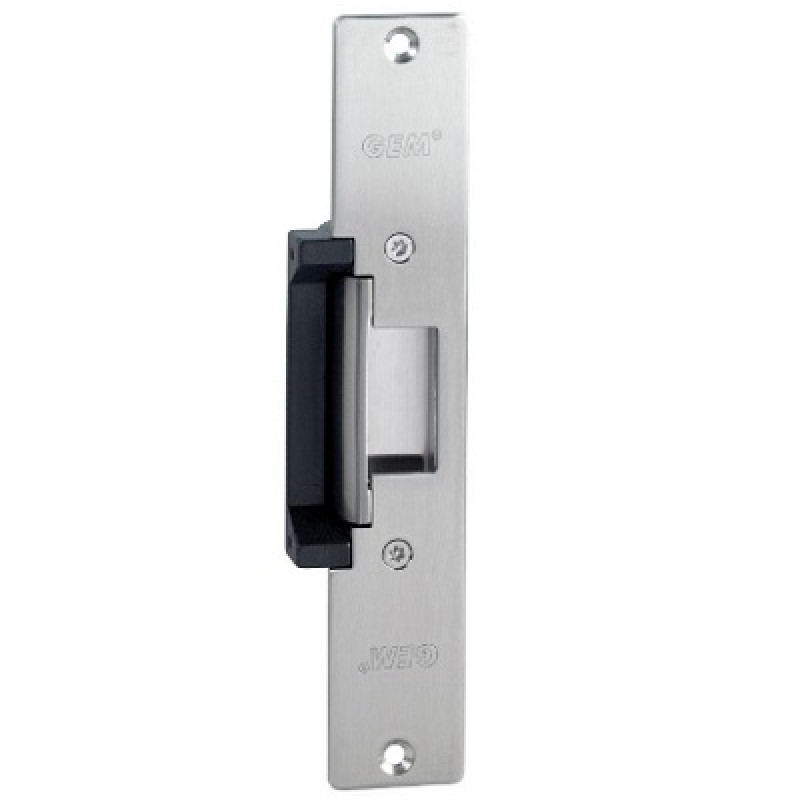

SSP, ER310L-24, Long Faceplate Release for Wooden Door 24Vdc

SSP, ER310L-24, Long Faceplate Release for Wooden Door 24Vdc

The ER310L-24 Long Faceplate release for Wooden door 24Vdc.The ER310 series electric strikes (ANSI-sized) are designed for used with lockset (ex. spring latch), having up to 12 mm keeper depth for in-swinging doors. The units are design for using with most hollow metal frames and aluminum frames. Stainless steel plate ensures strength and long life.

Key Features:

• Ansi style release
• Switchable fail safe / fail secure
• Lip extensions available
• Reversible
• 24Vdc Current Consumption with 150mAmp current draw
• Long faceplate Suitable for wooden doors
• TIP: Fail safe means when the power is cut the door will open, fail secure means when the power is cut the door will remain shut.
• Version Changeable
• The Electric strike can be used automatically and manually
• CSIRO Fire-resistance Certificate
• Long life solenoids
• 2000 LBS jaw strength pull testing

Specifications:

• Power Input: 12 V DC (24V DC available by Special order)
• Voltage Tolerance: 15%
• Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC (at Temperature 20)
• Sensor Switch monitored output (optional model), Rating 2A@125V, indicates the lockset locked or unlocked status.
• Operating Temperature: -10-45
• Humidity: 0-95% Non-condensing.
• Lock\'s surface Temperature (when the power is on):
• Tested to 1,000,000 Cycles.
