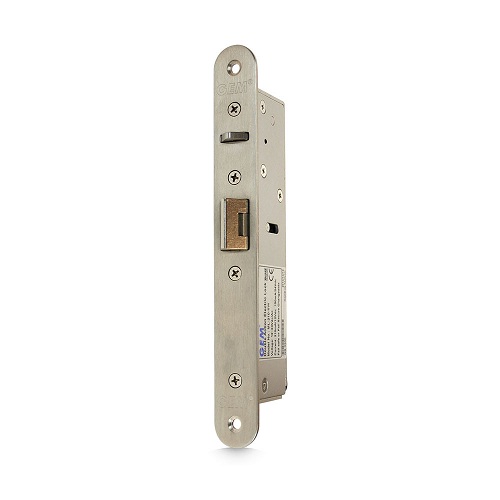

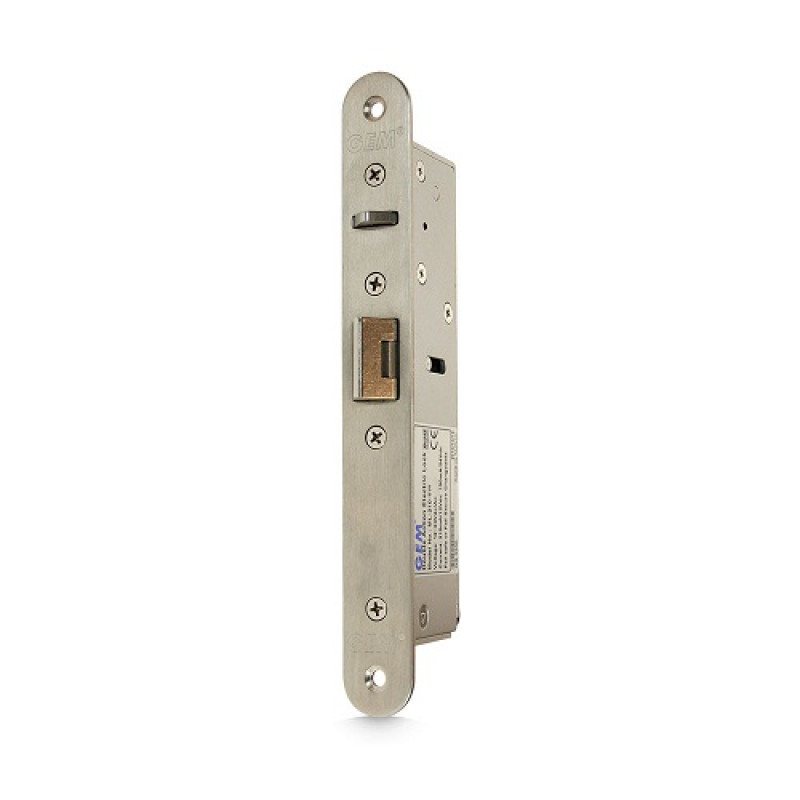

ICS, ML210N-SW, Electric Double Swing Lock

ICS, ML210N-SW, Electric Double Swing Lock

• Operating voltage 12~24Vdc (Selectable)
• Fail-Safe/Fail-Secure (Selectable)
• For double swing doors
• Horizontal or vertical installation

Description

• Voltage tolerance: ±15%.
• Current draw: 210mA at 12Vdc, 150mA at 24Vdc (at temperature 20°C).
• Operating temperature: -10~45°C (14 to 131°F).
• Lock’s surface temperature: Current temperature ±20% (when power is on).
• Lock bolt sensor switch output (SPDT rated 3A at 125Vac).
• Humidity: 0~95% non-condensing.
• 2000lbs jaw strength pull testing.
• Tested to 1,000,000 cycles.
• Weight: 594g (approx).
