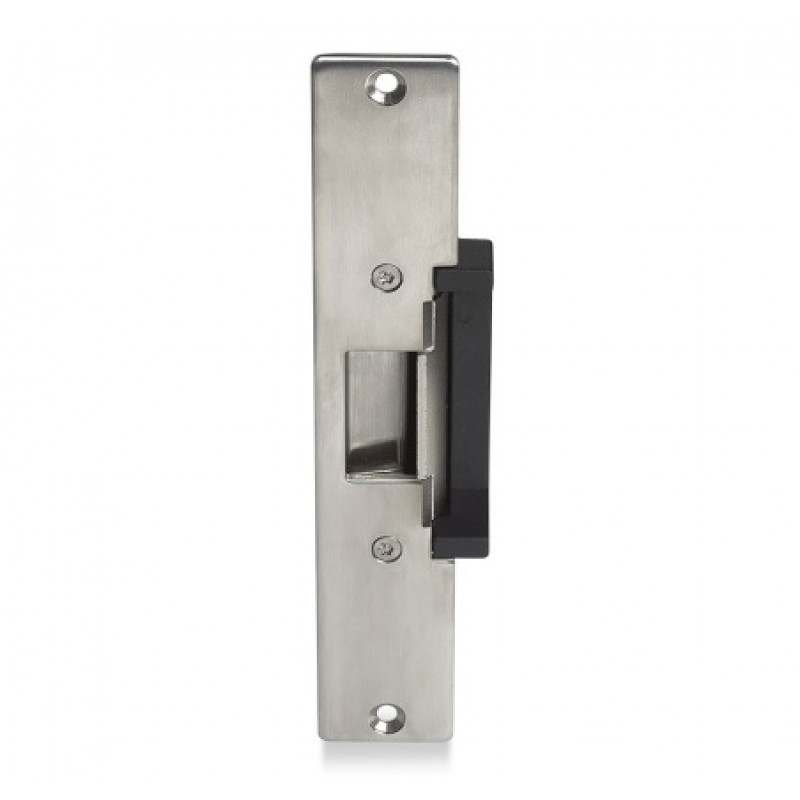

ICS, GK311-1224, Electric Release - Fail Safe/Secure - 12/24VDC Selectable
- Brand:ICS
- Product Code:GK311-1224
- Availability:Please Call or Email to Checkout
ICS, GK311-1224, Electric Release - Fail Safe/Secure - 12/24VDC Selectable
The GK311-1224 is a Electric Release - Fail Safe/Secure - 12/24VDC Selectable.
Key Features:
- Operating voltage 24Vdc.
- Fail-Safe/Fail-Secure (Selectable).
- Supplied with long and short plates.
- Voltage tolerance: ±15%.
- Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Sensor switch monitored output indicates lockset locked or unlocked status (SPDT rated 2A at 125Vdc).
- Humidity: 0~95% non-condensing.
- Horizontal or vertical installation.
- Tested to 1,000,000 cycles.
- 2000lbs jaw strength pull testing.
Specifications:
- Dimensions : 202 × 36.5 × 17 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
