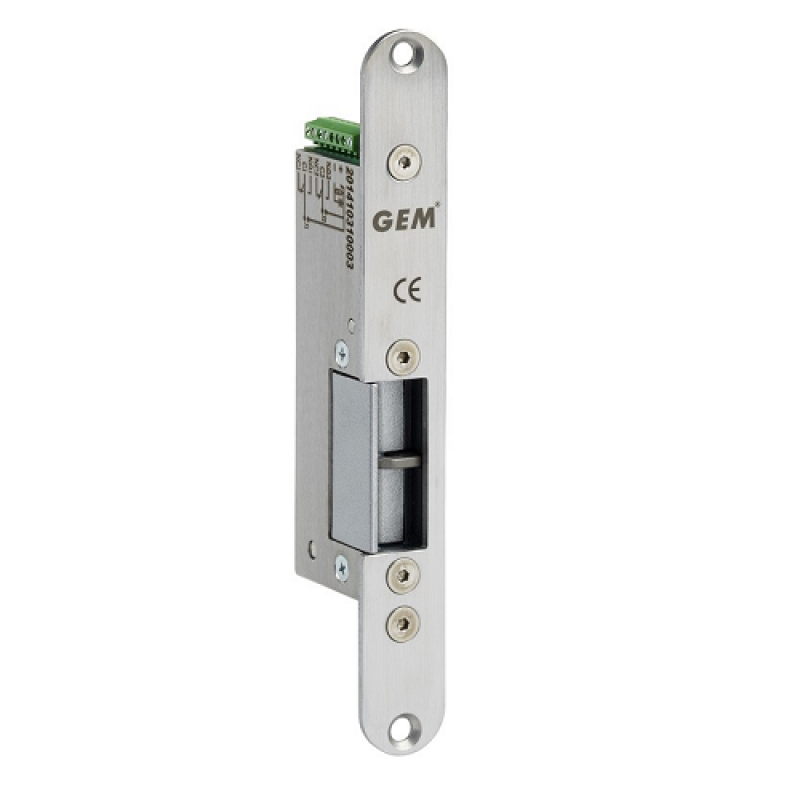

ICS, GK231M-L, 12VDC-Monitored - Side Load Operation - Fire Tested (DIN LEFT)
- Brand:ICS
- Product Code:GK231M-L
- Availability:Please Call or Email Us to Check Availability
ICS, GK231M-L, 12VDC-Monitored - Side Load Operation - Fire Tested (DIN LEFT)
Key Features:
- Operating voltage 12 or 24Vdc
- Stainless Steel
- Monitored
- Left hand
- Fail-Safe
- 1500lbs holding force
- 500lbs side-load
- 1 Hour UK fire certificate
Description:
- Voltage tolerance: ±20%.
- Current draw: 280mA at 12Vdc, 140mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Humidity: 0~95% non-condensing.
- Life rating of solenoid valve: 250,000 cycles.
- Keeper width: 48mm.
- Latch throw: 15mm (GK233: 8mm).
- 1500lbs jaw strength pulls testing.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
