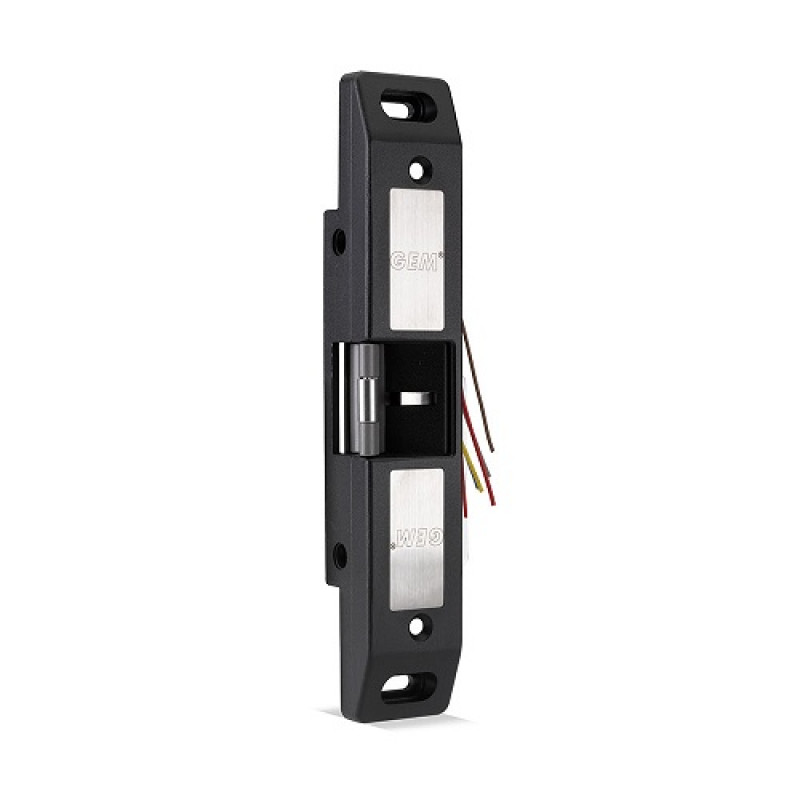

ICS, GK1100, Electric Strike for Panic Bars
- Brand:ICS
- Product Code:GK1100
- Availability:Please Call or Email Us to Check Availability
ICS, GK1100, Electric Strike for Panic Bars
Key Features:
- Operating voltage 12~28Vac/Vdc
- Material: Metal surface
- Fail-Safe/Fail-Secure (Selectable)
- Long life solenoid
- 17mm maximum latch throw
- Lock & unlock / door status output
- Suitable with panic bar (Latch)
Description:
- Voltage tolerance: ±15%.
- Current draw: 230mA at 12Vdc, 140mA at 28Vdc, 440mA at 12Vac, 230mA at 28Vac (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Reed switch rating: 1A/125Vac.
- Humidity: 0~95% non-condensing.
- Tested to 1,000,000 cycles (solenoid).
- 1500lbs jaw strength pulls testing.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
