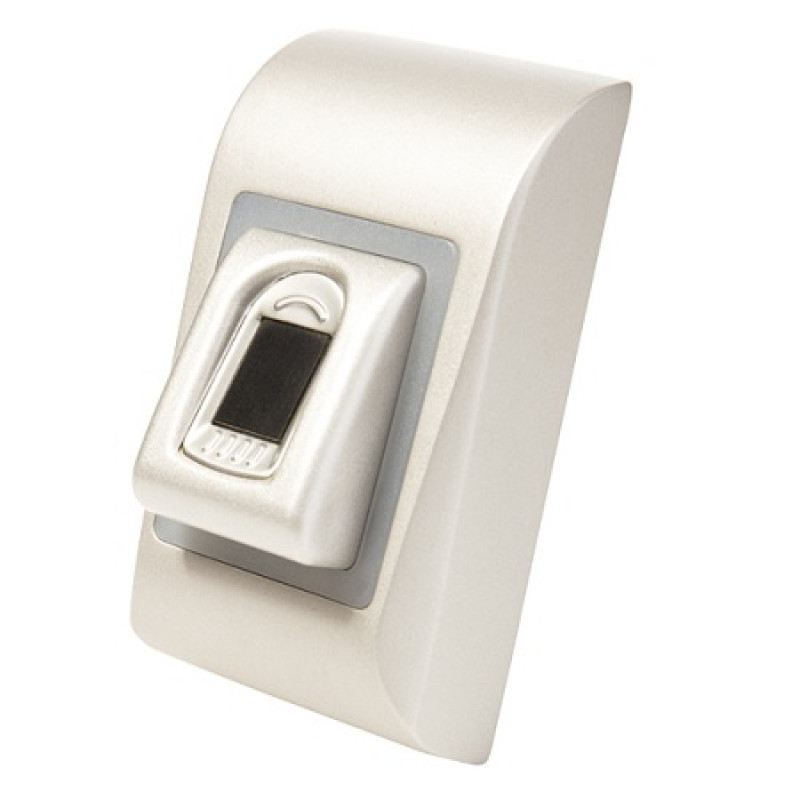

Videx, B100S, Silver Surface Wiegand Swipe Finger Print Reader(100 templates) IP54

Videx, B100S, Silver Surface Wiegand Swipe Finger Print Reader(100 templates) (92mm x 51mm x 25mm) IP54

A range of capacitive and swipe capacitive biometric fingerprint readers are available for the Portl Plus access control system. Both flush mounting and surface options available as either self-contained fingerprint readers or available within the VR4K series and VR120 series vandal resistant series range.

Key Features:

• A range of flush & surface Portal Plus biometric fingerprint readers
• Capacitive and swipe capacitive fingerprint readers
• RS485 and Wiegand connectivity
• Wiegand communication protocols 8 to 128 bit (default 26 bit)
• Storage capacity of 9500 fingerprints (BIOC, VR4KBIO & DINBIOC)
• Storage capacity of 100 fingerprints (B100S and DINB100-E)
• Status indication LED's (Tri-colour halo LED) and internal sounder
• Low current consumption fingerprint readers
• Programmable via the PROS CS software

Specification:

• Power input: 12Vdc (supplied by Portal Plus controller)
• Current consumption: 100mA max.
• Material / colour: Moulded aluminium, silver
• Output Protocol: Wiegand 8 – 128 bit (default 26 bit)
• Connectivity: RS485 & Wiegand
• Fingerprint sensor type: swipe capacitive
• Fingerprint capacity: up to 100
• Status LED’s: Tri-colour halo LED (green = accept, red = denied & amber = standby/data) with internal sounder
• IP Rating / mounting: IP65, surface (internal use)
• Dimensions (mm): 51 (W) x 91 (H) x 25 (D)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
