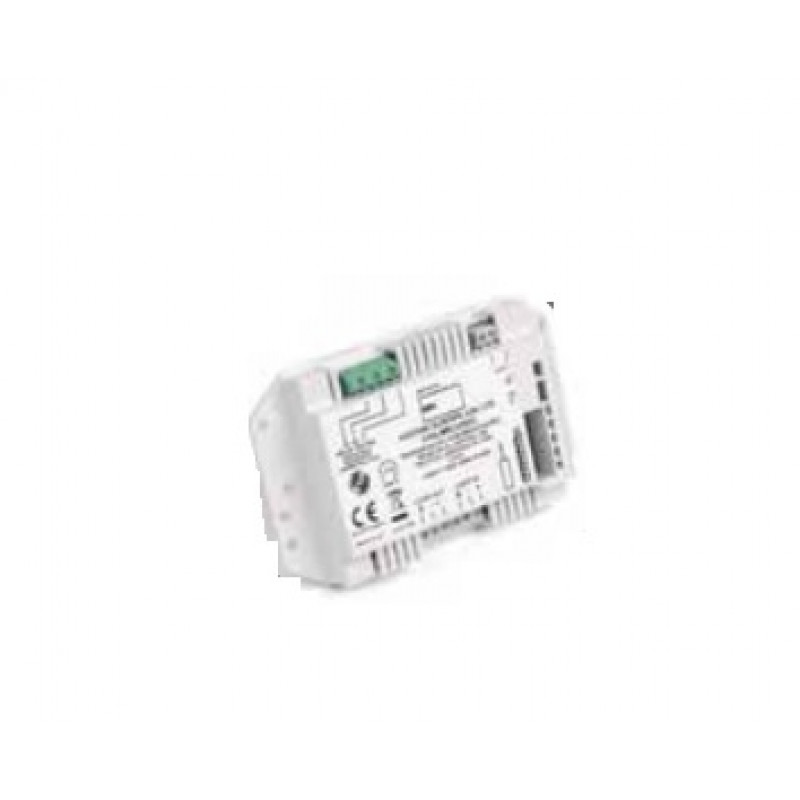

ID-WLMRC, Hydrosense ID Addressable Mains Relay Controller
- Brand:Vimpex
- Product Code:ID-WLMRC
- Availability:Please Call or Email Us to Check Availability
ID-WLMRC, Hydrosense ID Addressable Mains Relay Controller
The ID-WLMRC is a loop driven addressable device, and can be integrated into our powerful Cause and Effect matrix. The addressable element also allows the user to allocate the device with a location-specific name. A single input is also provided on the device (in addition to the addressable circuit), and providing a closed contact to this input will result in the relay being energised. This makes it ideal for connection to a Manual Call Point or for signalling from other pieces of equipment. The Mains Relay Controller is capable of switching a 250Vac 5A load, and is ideal for controlling solenoid valves or plant equipment.
Specifications:
- Operating Voltage: 17 - 41Vdc
- Current Consumption: 22mA (when polling)
- Relay Contact Rating: 48Vdc, Max. 2A or 250Vac, Max 5A.
- Input EOL Rating: 10,000Ω, 0.25W
- Operating Temp Range: -10 to +50 C
- Storage Temp. -30 to +60 C
- Max. Humidity: 95% RH (Non-Condensing) at 40 C
- Dimensions (LxHxD): 157 x 127 x 35mm.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
