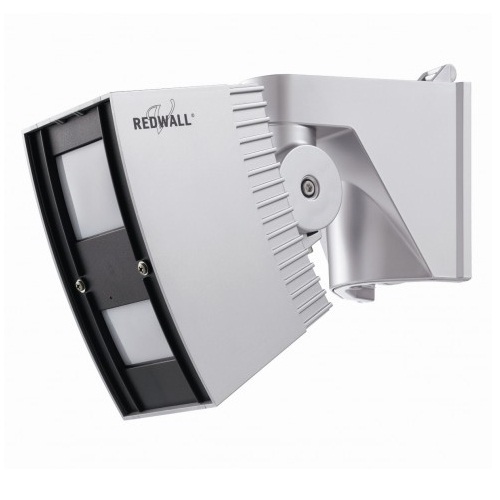

OPTEX (Redwall-V) SIP-4010WF, 40mx10m Low Current External PIR

OPTEX (Redwall-V) SIP-4010WF, 40mx10m Low Current External PIR

The SIP4010WF is part of our wire-free models designed for use where a reliable low current detector is required. Our Wire Free range can be very effective in situations where temporary or remote sites need protection. The SIP series features an intelligent detection system that monitors the temperature and illumincance of the environment and automatically adjusts the sensitivity. The 40mx10m (LxW) model is ideal for protecting long and relatively wide site areas.

Designed to Trigger CCTV Systems:

The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and trigger the CCTV system when an intrusion occurs. The SIP-4010WF has two independent detection zones, far and near zones, with independent sensitivity selection, that can trigger camera pre-set and provide the best view of the scene to local security staff or remote monitoring stations. This model is the wire free version and is designed to be powered by batteries, with an optional radio transmitter for locations where cabling can be challenging (transmitter and batteries to be supplied seperatly).

Weather and vandal-resistant:

The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance and they have a IP65 rating for the main unit. They also vandal-resistant featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.

Low Current and Battery-powered:

The sensor operates on 40 μA in standby and on maximum 5mA when the LED is on, the batteries used for the sensor can also power the radio transmitter making it an ideal intrusion detection sensor for temporary locations such as construction sites and event as well as for hard-to-wire sites. Most radio transmitters available on the market can fit within the housing.

Key Features:

• Intelligent PIR detection system
• Designed to trigger CCTV systems
• Two independent detection zones far/near
• Active infrared antimasking and vandal-resistant

Applications:

• Buildings
• Approach

For more details, please refer with our attached datasheet.
