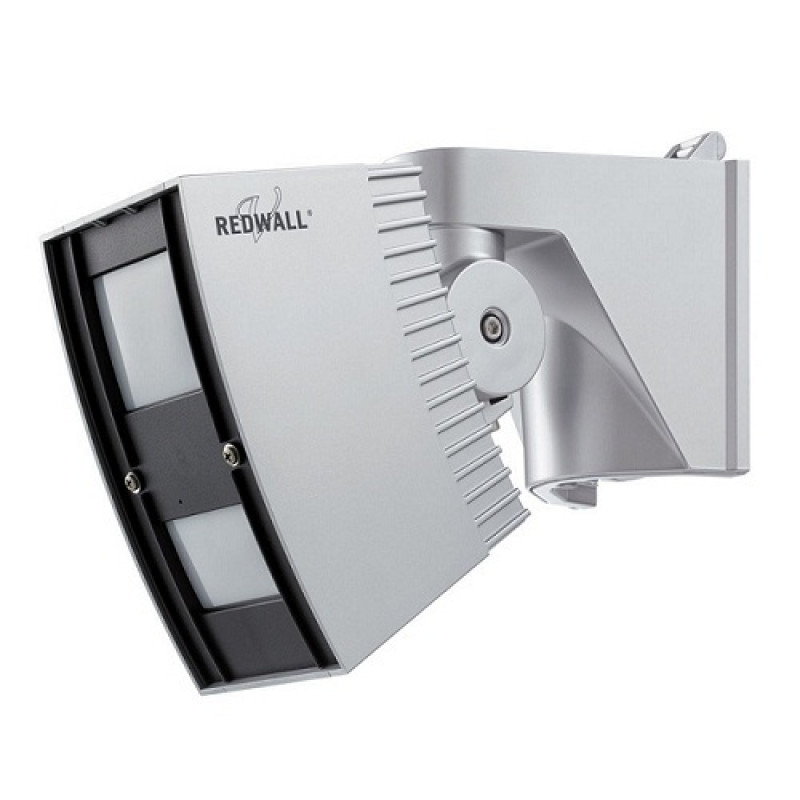

OPTEX(Redwall), SIP-100-IP-BOX, 100x3m 3 O/P for IP PTZ Camera Control

OPTEX(Redwall), SIP-100-IP-BOX, 100m x 3m with 3 Outputs Suitable for IP PTZ Camera Control, Power over Ethernet, Storage Box for PIE-1

The REDWALL SIP-IP-BOX is a series of long range IP/PoE outdoor PIRs designed to work in conjunction with Video Management Software (VMS) platforms, and IP camera manufacturers and PSIM providers. The alarm event generated by the IP sensors will trigger a response from the syscurity system.

Very stable in outdoor environment the Redwall SIP sensors have a very low false alarm rate and are instrumental for make event-triggered security systems stable. The SIP-100-IP-BOX is a IP/PoE model providing a detection range of 100x3m (LxW) ideal to protect long and narrow areas such as along fence lines or buildings and alleyways. It comprises of the SIP-100 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box.

Enhancing IP CCTV Systems:

Event-triggered CCTV systems need to rely on accurate and genuine detection. Although most IP cameras provide video motion detection, using this detection method alone can prove challenging in outdoor environment where the constant changes of lighting and weather conditions can create false alarms. The SIP-100-IP-BOX will detect motion whatever the lighting conditions and will track the intruder across its three independent detection zones - far, near and creep zones- and trigger the relevant camera presets to follow visually the intruder.

Weather and Vandal-resistant:

REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance, they feature an IP65 rating for the main unit. The SIP series is vandal-resistantant all SIP products are built with polycarbonate housing, featuring an accelerometer to detect whether or not the sensor position has been tampered with.

VMS Integration:

The REDWALL SIP-IP-BOX series generates a unique alarm event code (REC) which communicates a number of events including detection, tamper and environmental status to the IP cameras, DVR and VMS platforms that have integrated the code. The list of VMS plaforms that have already integrated our event code includes many key players in the industry and is constantly growing.

Key Features:

• Double Quad pyro-elements with patented Double Conductive Shielding
• Advanced detection algorithm
• Reinforced polycarbonate housing
• Equipped with anti rotation & anti-masking functions to prevent vandalism

Applications:

• Buildings
• Perimeter
• Approach

For more details, Please refer with our attached datasheet.
