Optex (WXS-DAM-X5) 12m (40ft), 180 degree outdoor PIR wired with dual-technology (PIR + Microwave), Anti-Masking

Optex (WXS-DAM-X5) High Mount PIR / Microwave Multi Dimensional Outdoor Detector 12m x 180° coverage with anti-masking

12m (40ft), 180 degree outdoor PIR wired with dual-technology (PIR + Microwave)

• up to 12m, 180 degree outdoor PIR with anti-masking
• Dual-technology (4PIR + 2MW), triple layered detection and pet tolerance
• Selectable low (0.8m-1.2m) or high (2m) mount
• Independent left/ right detection areas and alarm outputs - ideal for CCTV

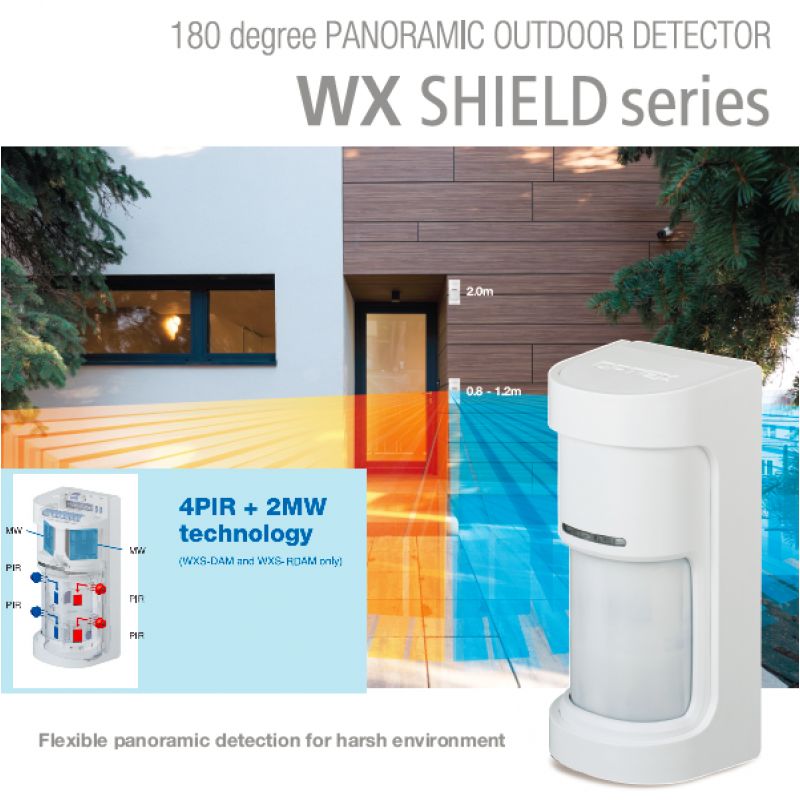

Part of the Shield family, the WXS series is OPTEX's latest 180° outdoor intrusion detection sensors with flexible range detection and settings, as well as a selectable low (0.8 - 1.2m) or high mount (2m) option and self-learning IR digital anti-masking. Ideal as approach or flat roof protection for residential and commercial premises, the sensor is equipped with the Shield advanced features including double conductive shielding to avoid false alarms triggered by bright sunlight or RFI, and automatic walk test. WXS-AM is the hard-wired model.

Flexible mounting height

The WXS outdoor intrusion sensors can be installed at a low mount providing a flexible detection area from 2.5 to 12m. It can also be mounted at 2.0m high, creating a volumetric detection area with 9m detection range. This option can be effective to avoid vandalism or masking of lens.

Two independent left / right detection areas

In low mount configuration, the WXS intrusion detection sensors feature two completely independent 90 degrees detection areas (left and right), that can be set at different detection distance, sensitivity and trigger independent alarm outputs which is very useful for PTZ activation.

Detection analysis and pet tolerance

The WX Shield outdoor intruder sensors are designed to be pet and animal tolerant which means it will not trigger if cats, dogs, birds are in the detection area making it very stable. Additionally they feature OPTEX Super Multi-dimensional Analyis (SMDA) which can rule out environemental changes such as vegetaion sway, shadow etc making the sensor very reliable.

Applications

• Buildings
• Approach
• House
• Garden
• Garage

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
