Optex (QXI-DT-X8) PIR/Microwave Detector 12m x 120 Degree Coverage with anti-blocking and dual-technology
- Brand:Optex
- Product Code:QXI-DT-X8
- Availability:Please Call or Email Us to Check Availability
Optex (QXI-DT-X8) High/Low mount Wide angle PIR/Microwave Detector 12m x 120 Degree Coverage with anti-blocking and dual-technology *10.525 GHz

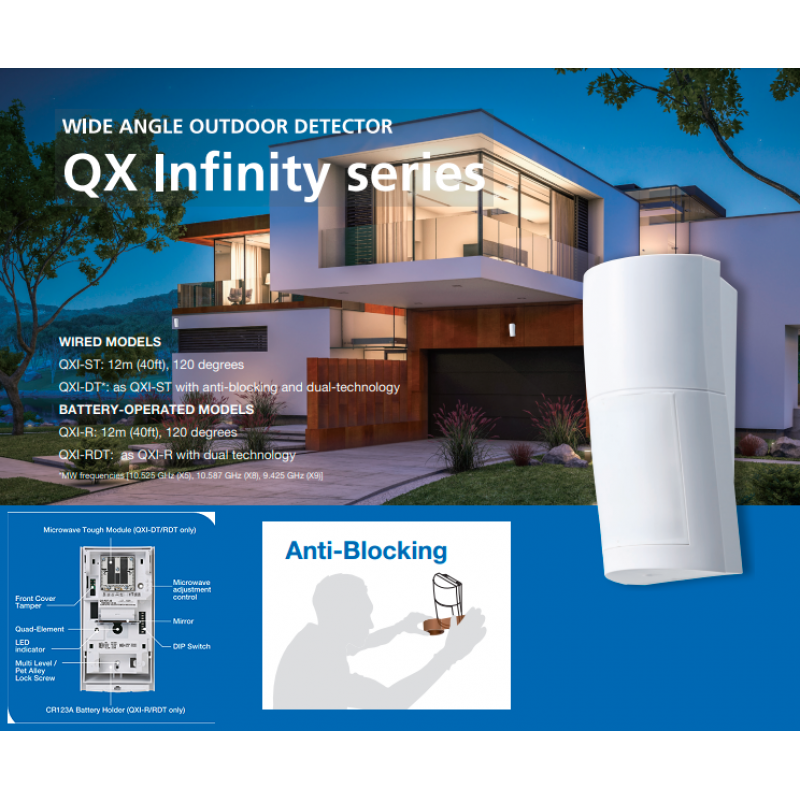

The QX Infinity (QXI) series is a range of outdoor PIRs and dual-technology sensors providing 120° wide and 12m (40ft) detection area, which can be adjusted with the masking strips provided. Sleek and compact, the QXI sensors are small and well suited to any residential or commercial building as they provide reliable, animal tolerant intrusion and motion detection to trigger alarm panel of CCTV camera.
Dual-technology models: For more challenging environments, the QXI-DT (wired model) and the QXI-RDT (wireless model), combine PIR and Microwave technologies to confirm the alarm. They feature the OPTEX Tough microwave module, specifically developed to prevent corrosion from condensation and humidity
Anti-Blocking: The QXI-DT model offers an anti-blocking function in high mount utilising the microwave module to detect attempts to mask the sensor.
12m (40ft), 120 degree outdoor PIR wired with dual-technology (PIR + Microwave) and anti-blocking
- 12m, 120 degree outdoor PIR with anti-blocking
- Dual-technology for greater stability, double layered detection and pet tolerant
- High (2.2-2.7m) mount or low mount (0.8m-1.2m) for pet alley mode
- SMDA logic and double conductive shielding to minimise nuisance alarms
Selectable mounting height
The QXI outdoor intrusion sensors can be installed at a high mount between 2.2 and 2.7m creating a multi-level volumetric detection pattern, allowing it to ignore small animals. In environments with larger animals, the sensor can be mounted between 0.8 and 1.2m height, to provide a pet alley.
Detection analysis to filter out false alarms
The QXI outdoor intruder sensors are designed to be not affected by environment or small animals. The alarm will not be triggered by changes of weather, vegetation sways or pets in the detection area, contributing to reliable outdoor detection. Additionally the series features double conductive shielding which filters out visible light and RFI disturbance.
Sleek design & easy installation
The dimensions of the sensor and finish of the shielding have been designed to make the sensor easy to blend in any residential or small commercial building. Also with the customer in mind the sensor features a screwless design making the opening and closing of the front cover very easy.
Applications
- Approach
- House
- Garden
- Driveway
Specifications:
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
